SJOOW1802-10

Active

Remington Industries

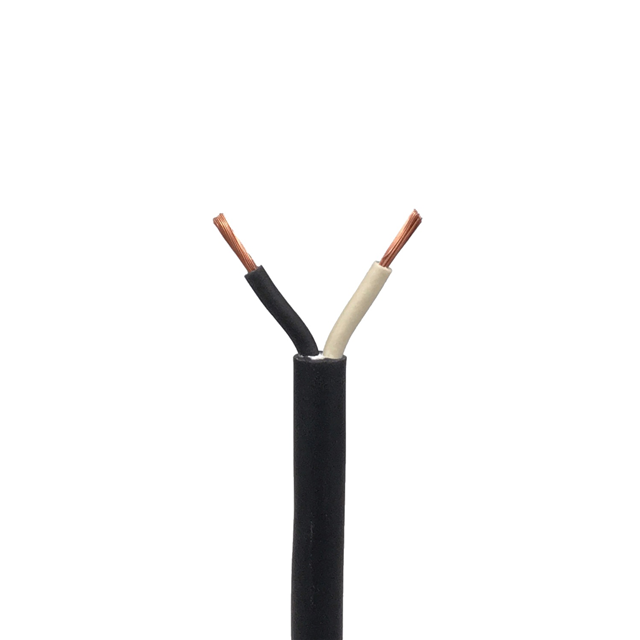

PORTABLE CORD 2CON 18AWG BLK 10'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJOOW1802-10

Active

Remington Industries

PORTABLE CORD 2CON 18AWG BLK 10'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJOOW1802-10

Cable Type	Portable Cord
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant
Jacket (Insulation) Diameter	7.24 mm
Jacket (Insulation) Diameter	0.285 in
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length	10 ft
Length	3.05 m
Number of Conductors	2
Operating Temperature	194 °F
Ratings	UL Style SJOOW
Usage	Portable Power Tools and Equipment
Voltage	300 V
Wire Gauge	18 AWG

SJOOW1802 Series

Part	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket Color	Length	Length	Cable Type	Features	Conductor Material	Ratings	Wire Gauge	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
Remington Industries SJOOW1802-10	7.24 mm	0.285 in	Ethylene Propylene Terpolymer Rubber (EPDM)	Chlorinated Polyethylene (CPE)	194 °F	Portable Power Tools and Equipment	16	30 AWG	300 V	Black	10 ft	3.05 m	Portable Cord	Abrasion Resistant Chemical Resistant Oil Resistant UV Resistant Water Resistant	Copper Bare	UL Style SJOOW	18 AWG	2	0.762 mm	0.03 in
Remington Industries SJOOW1802-25	7.24 mm	0.285 in	Ethylene Propylene Terpolymer Rubber (EPDM)	Chlorinated Polyethylene (CPE)	194 °F	Portable Power Tools and Equipment	16	30 AWG	300 V	Black			Portable Cord	Abrasion Resistant Chemical Resistant Oil Resistant UV Resistant Water Resistant	Copper Bare	UL Style SJOOW	18 AWG	2	0.762 mm	0.03 in	25 ft	7.62 m
Remington Industries SJOOW1802-100	7.24 mm	0.285 in	Ethylene Propylene Terpolymer Rubber (EPDM)	Chlorinated Polyethylene (CPE)	194 °F	Portable Power Tools and Equipment	16	30 AWG	300 V	Black			Portable Cord	Abrasion Resistant Chemical Resistant Oil Resistant UV Resistant Water Resistant	Copper Bare	UL Style SJOOW	18 AWG	2	0.762 mm	0.03 in	100 ft	30.5 m
Remington Industries SJOOW1802-500	7.24 mm	0.285 in	Ethylene Propylene Terpolymer Rubber (EPDM)	Chlorinated Polyethylene (CPE)	194 °F	Portable Power Tools and Equipment	16	30 AWG	300 V	Black			Portable Cord	Abrasion Resistant Chemical Resistant Oil Resistant UV Resistant Water Resistant	Copper Bare	UL Style SJOOW	18 AWG	2	0.762 mm	0.03 in	500 '	152.4 m
Remington Industries SJOOW1802-50	7.24 mm	0.285 in	Ethylene Propylene Terpolymer Rubber (EPDM)	Chlorinated Polyethylene (CPE)	194 °F	Portable Power Tools and Equipment	16	30 AWG	300 V	Black		15.24 m	Portable Cord	Abrasion Resistant Chemical Resistant Oil Resistant UV Resistant Water Resistant	Copper Bare	UL Style SJOOW	18 AWG	2	0.762 mm	0.03 in	50 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.40

Description

General part information

SJOOW1802 Series

2 Conductor Portable Cord Cable Black 18 AWG 10.00' (3.05m)
