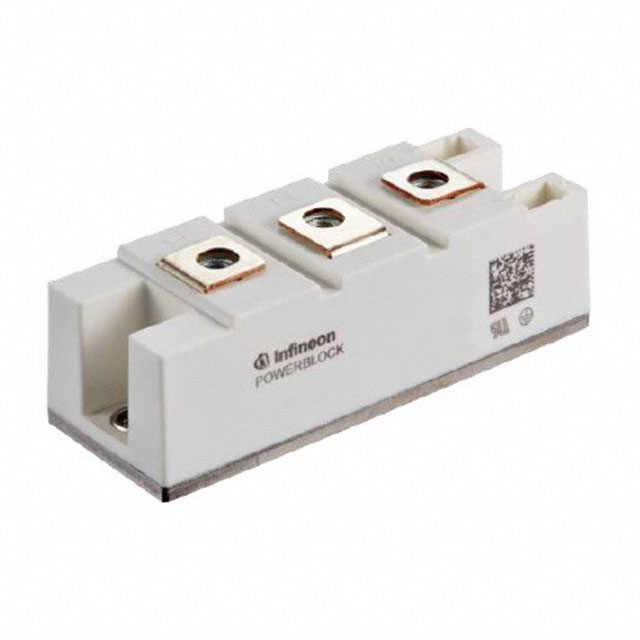

TT190N18SOFHPSA1

Active

Infineon Technologies

1800 V, 190 A ECO BLOCK 34 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TT190N18SOFHPSA1

Active

Infineon Technologies

1800 V, 190 A ECO BLOCK 34 MM THYRISTOR / THYRISTOR PHASE CONTROL MODULES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TT190N18SOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	145 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5200 A
Current - On State (It (RMS)) (Max)	275 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.8 kV

TT190N18 Series

Part	Package / Case	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]	Structure	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies TT190N18SOFHPSA1	Module	1	200 mA	Series Connection - SCR/Diode	1.8 kV	5200 A	145 mA	275 A	2.5 V	Chassis Mount	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 54.53
		10	$ 41.40
		25	$ 39.36
Newark	Each	1	$ 54.20
		5	$ 47.57
		16	$ 40.93

Description

General part information

TT190N18 Series

Thyristor/Thyristor 34 mm Eco Block 1800 V, 190 A module for phase control insolder bond technology. This is the second generation with increase current rating. If you need additional features or higher performance go topressure contact technology.
