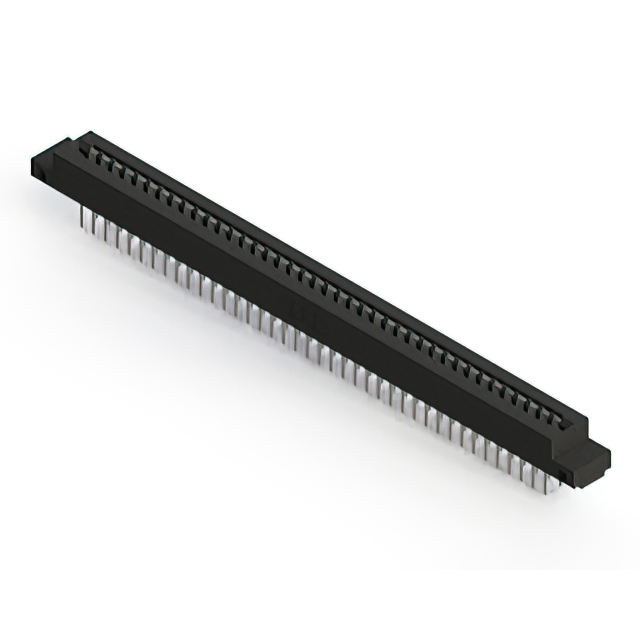

857-080-422-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-080-422-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-080-422-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
857-080 Series
| Part | Number of Positions | Color | Termination Rows | Pitch [x] | Pitch [x] | Gender | Mounting Type | Contact Type | Number of Positions/Bay/Row [custom] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Card Type | Number of Rows | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | |||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole Right Angle | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Non Specified - Dual Edge | 2 | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | Side Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | Card Extender | ||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Wire Wrap | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | |||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole Right Angle | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Non Specified - Dual Edge | 2 | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | ||||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | Flush Mount M3 Threaded Insert Top Opening | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | |||||||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole Right Angle | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Non Specified - Dual Edge | 2 | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Gold | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 80 | Black | 2 | 0.156 in | 3.96 mm | Female | Through Hole | Semi Bellows | 40 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Non Specified - Dual Edge | 2 | Solder | Side Mount Opening Unthreaded | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Tin | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 122.94 | |
Description
General part information
857-080 Series
80 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
