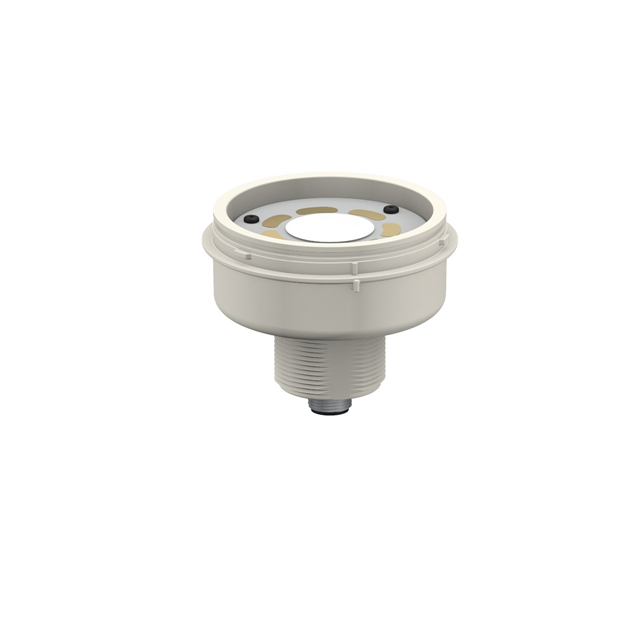

B-TL70-Q8C

Active

BANNER ENGINEERING

COMPLETE UNIT LED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

COMPLETE UNIT LED

Technical Specifications

Parameters and characteristics for this part

Specification	B-TL70-Q8C

Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Stacks	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Number of Stacks
BANNER ENGINEERING B-TL70-5	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	12 V	30 VDC	Mounting Base
BANNER ENGINEERING B-TL70Z-7	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	100 VAC	240 VAC	Mounting Base
BANNER ENGINEERING B-TL70-Q8C	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Connector	12 V	30 VDC	Complete Unit	1
BANNER ENGINEERING B-TL70-T-16	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	12 V	30 VDC	Complete Unit	1
BANNER ENGINEERING B-TL70Z-5	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	100 VAC	240 VAC	Mounting Base
BANNER ENGINEERING B-TL70DXN2-Q5	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Connector	12 V	30 VDC	Complete Unit	1
BANNER ENGINEERING B-TL70-Q5C	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	12 V	30 VDC	Mounting Base
BANNER ENGINEERING B-TL70-Q5	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	12 V	30 VDC	Mounting Base
BANNER ENGINEERING B-TL70-Q8	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	12 V	30 VDC	Mounting Base
BANNER ENGINEERING B-TL70Z-Q5	-40 °C	50 °C	IP65 - Dust Tight Water Resistant	Wire Leads	100 VAC	240 VAC	Mounting Base

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.00
Newark	Each	1	$ 53.00

General part information

Stack Light Complete Unit LED Connector

Technical documentation and resources
