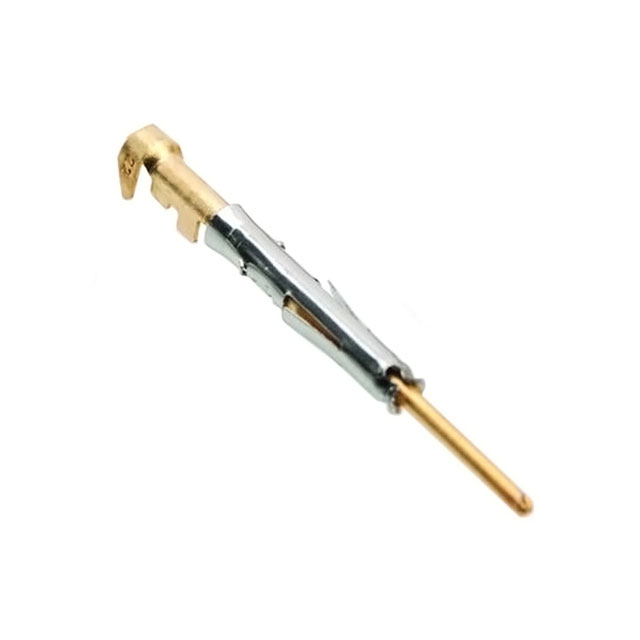

SP20W1F

Obsolete

Amphenol Sine Systems Corp

CONTACT PIN 20-22AWG CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SP20W1F

Obsolete

Amphenol Sine Systems Corp

CONTACT PIN 20-22AWG CRIMP GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SP20W1F

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Termination Finish	Copper Alloy
Type	Stamped, Signal
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	20 AWG
Wire Gauge or Range - mm˛ [Max]	0.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.34 mm˛

SP20 Series

Part	Contact Termination	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Contact Type	Contact Size	Contact Material	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Termination Finish	Contact Finish Thickness
Amphenol Sine Systems Corp SP20W2G10	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	20	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	10 Áin	0.25 Ám
Amphenol Sine Systems Corp SP20M1N	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy	0.5 mm²	0.34 mm²	Nickel	Insulation Support
Amphenol Sine Systems Corp SP20W1T	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	20	Copper Alloy	0.5 mm²	0.34 mm²	Tin	Insulation Support
Amphenol Sine Systems Corp SP20W1F	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	20	Copper Alloy			Gold	Insulation Support			0.5 mm˛	0.34 mm˛	Copper Alloy	Flash
Amphenol Sine Systems Corp SP20M1G15	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	15 µin	0.38 µm
Amphenol Sine Systems Corp SP20M1G10	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	10 Áin	0.25 Ám
Amphenol Sine Systems Corp SP20M2G30	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	30 Áin	0.76 Ám
Amphenol Sine Systems Corp SP20M2T	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy			Tin	Insulation Support			0.5 mm˛	0.34 mm˛
Amphenol Sine Systems Corp SP20M1G30	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	16	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	30 Áin	0.76 Ám
Amphenol Sine Systems Corp SP20W2G15	Crimp	20 AWG	22 AWG	Signal Stamped	Pin	20	Copper Alloy	0.5 mm²	0.34 mm²	Gold	Insulation Support	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SP20 Series

Pin Contact 20-22 AWG Size 20 Crimp Gold
