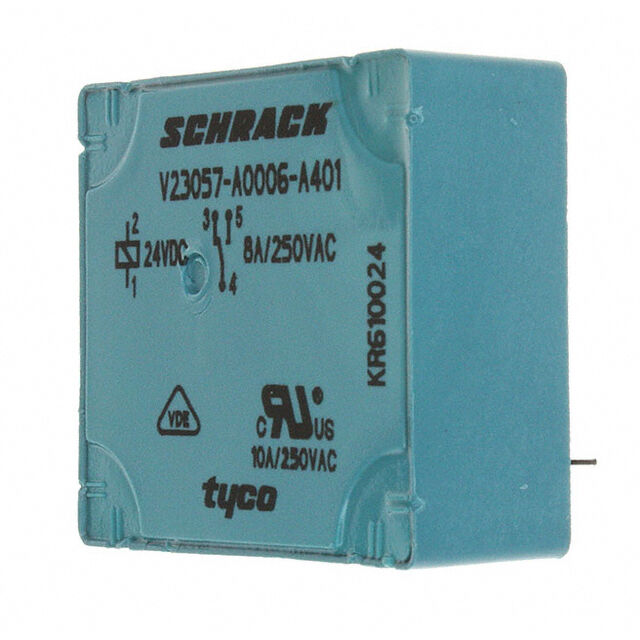

V23057-A0006-A401

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V23057-A0006-A401

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23057-A0006-A401

Approval Agency	cURus, VDE
Coil Current	20 mA
Coil Resistance	1.2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16 VDC
Must Release Voltage	2.4 VDC
Operate Time	7 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23057 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Coil Voltage	Release Time	Switching Voltage [Max]	Contact Form	Load - Max Switching	Coil Current	Must Operate Voltage	Coil Resistance	Contact Material	Coil Type	Must Release Voltage	Relay Type	Contact Rating (Current)	Mounting Type	Operate Time	Termination Style
TE Connectivity Potter & Brumfield Relays V23057B 2A401	-40 °C	70 °C	cURus VDE	12 VDC	3 ms	400 VAC	SPDT (1 Form C)	3200 VA	36.3 mA	8 VDC	330 Ohms	Silver Cadmium Oxide (AgCdO)	Non Latching	1.2 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057-A0006-A401	-40 °C	70 °C	cURus VDE	24 VDC	3 ms	400 VAC	SPDT (1 Form C)	3200 VA	20 mA	16 VDC	1.2 kOhms	Silver Cadmium Oxide (AgCdO)	Non Latching	2.4 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057A0006A101	-40 °C	70 °C	cURus VDE	24 VDC	3 ms	400 VAC	SPDT (1 Form C)	2000 VA	20 mA	16 VDC	1.2 kOhms	Silver Nickel (AgNi)	Non Latching	2.4 VDC	General Purpose	5 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057-B0002-A201	-40 °C	70 °C	cURus VDE	12 VDC	3 ms	400 VAC	SPDT (1 Form C)	3200 VA	36.3 mA	8 VDC	330 Ohms	Silver Nickel (AgNi)	Non Latching	1.2 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057B 6A402	-40 °C	70 °C	cURus VDE	24 VDC	3 ms	400 VAC	SPST-NO (1 Form A)	3200 VA	20 mA	16 VDC	1.2 kOhms	Silver Cadmium Oxide (AgCdO)	Non Latching	2.4 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057B 6A401	-40 °C	70 °C	cURus VDE	24 VDC	3 ms	400 VAC	SPDT (1 Form C)	3200 VA	20 mA	16 VDC	1.2 kOhms	Silver Cadmium Oxide (AgCdO)	Non Latching	2.4 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057B 13A101	-40 °C	70 °C	cURus VDE	48 VDC	3 ms	400 VAC	SPDT (1 Form C)	2000 VA	10.2 mA	32 VDC	4700 Ohms	Silver Nickel (AgNi)	Non Latching	4.8 VDC	General Purpose	5 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057B 2A402	-40 °C	70 °C	cURus VDE	12 VDC	3 ms	400 VAC	SPST-NO (1 Form A)	3200 VA	36.3 mA	8 VDC	330 Ohms	Silver Cadmium Oxide (AgCdO)	Non Latching	1.2 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays 2-1393216-5	-40 °C	70 °C	cURus VDE	12 VDC	3 ms	400 VAC	SPDT (1 Form C)	3200 VA	36.4 mA	8.3 VDC	330 Ohms	Silver Nickel (AgNi)	Non Latching	1.2 VDC	General Purpose	8 A	Through Hole	7 ms	PC Pin
TE Connectivity Potter & Brumfield Relays V23057A 2A101	-40 °C	70 °C	cURus VDE	12 VDC	3 ms	400 VAC	SPDT (1 Form C)	2000 VA	36.3 mA	8 VDC	330 Ohms	Silver Nickel (AgNi)	Non Latching	1.2 VDC	General Purpose	5 A	Through Hole	7 ms	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V23057 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
