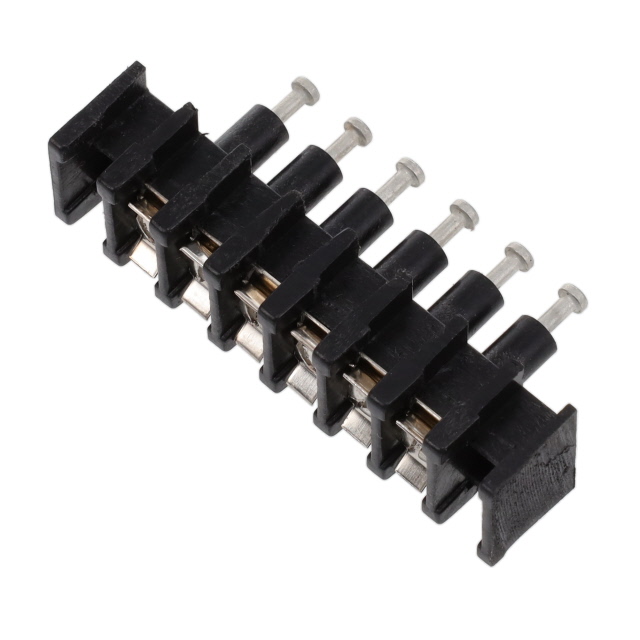

SEIFCX-6

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.25"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 6CIRC 0.25"

Technical Specifications

Parameters and characteristics for this part

Specification	SEIFCX-6

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated
Current Rating (Amps)	5 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	6
Number of Rows	1
Number of Wire Entries	6
Operating Temperature	110 °C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Brass
Top Termination	Screws with Captive Plate
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

Part	Current Rating (Amps)	Material Flammability Rating	Barrier Type	Operating Temperature	Pitch [x]	Pitch [x]	Terminal Screw Material	Material - Insulation	Mounting Type	Number of Circuits	Terminal Screw Finish	Number of Wire Entries	Features	Number of Rows	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]	Top Termination	Terminal Block Type
Curtis Industries SEIFCX-7	5 A	UL94 V-0	2 Wall (Dual)	110 °C	0.25 in	6.35 mm	Brass	Polyphenylene Oxide (PPO)	Chassis Panel	7	Nickel	7	Flange	1	Solder Turret Insulated	22 AWG	16 AWG	Screws with Captive Plate	Barrier Block
Curtis Industries SEIFCX-6	5 A	UL94 V-0	2 Wall (Dual)	110 °C	0.25 in	6.35 mm	Brass	Polyphenylene Oxide (PPO)	Chassis Panel	6	Nickel	6	Flange	1	Solder Turret Insulated	22 AWG	16 AWG	Screws with Captive Plate	Barrier Block
Curtis Industries SEIFCX-2	5 A	UL94 V-0	2 Wall (Dual)	110 °C	0.25 in	6.35 mm	Brass	Polyphenylene Oxide (PPO)	Chassis Panel	2	Nickel	2	Flange	1	Solder Turret Insulated	22 AWG	16 AWG	Screws with Captive Plate	Barrier Block
Curtis Industries SEIFCX-10	5 A	UL94 V-0	2 Wall (Dual)	110 °C	0.25 in	6.35 mm	Brass	Polyphenylene Oxide (PPO)	Chassis Panel	10	Nickel	10	Flange	1	Solder Turret Insulated	22 AWG	16 AWG	Screws with Captive Plate	Barrier Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate
