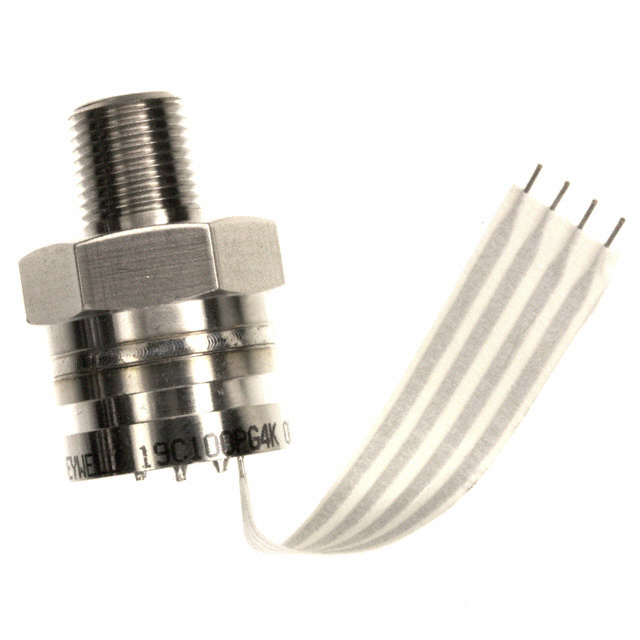

19C100PG4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIG 1/8"NPT 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

19C100PG4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIG 1/8"NPT 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19C100PG4K

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	2068.43 kPa
Maximum Pressure [Max]	300 PSI
Operating Pressure	689.48 kPa
Operating Pressure	100 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Flex Cable
Voltage - Supply	15 V

19C100 Series

Part	Features	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Termination Style	Voltage - Supply	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Accuracy	Output Type	Operating Pressure	Operating Pressure	Output [Max]	Applications	Port Size	Port Size	Port Size	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions 19C100PG2K	Temperature Compensated	Vented Gauge	125 °C	-40 °C	No Port	Flex Cable	15 V	2068.43 kPa	300 PSI	Cylinder	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV	Board Mount
Honeywell Sensing and Productivity Solutions 19C100PG4K	Temperature Compensated	Vented Gauge	125 °C	-40 °C	Threaded	Flex Cable	15 V	2068.43 kPa	300 PSI	Cylinder Threaded	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV	Board Mount	0.125 "	3.18 mm	Male
Honeywell Sensing and Productivity Solutions 19C100PA5L	Temperature Compensated		125 °C	-40 °C	Threaded	Flex Cable		2068.43 kPa	300 PSI	Cylinder Threaded	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV					NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C100PA7L	Temperature Compensated		125 °C	-40 °C	Threaded	Flex Cable		2068.43 kPa	300 PSI	Cylinder Threaded	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV			6.35 mm	BSPP Male
Honeywell Sensing and Productivity Solutions 19C100PA8K	Temperature Compensated		125 °C	-40 °C	No Port	Flex Cable	15 V	2068.43 kPa	300 PSI	Cylinder	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV
Honeywell Sensing and Productivity Solutions 19C100PG6K	Temperature Compensated	Vented Gauge	125 °C	-40 °C	Threaded	Flex Cable	15 V	2068.43 kPa	300 PSI	Cylinder Threaded	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV			0.4375 " 11.11 mm	Male UNF
Honeywell Sensing and Productivity Solutions 19C100PV4K	Temperature Compensated	Vacuum	125 °C	-40 °C	Threaded	Flex Cable	15 V			Cylinder Threaded	0.25 %	Analog Voltage	-689.48 kPa	-100 PSI	100 mV	Board Mount	0.125 "	3.18 mm	Male					-2068.43 kPa	-300 PSI
Honeywell Sensing and Productivity Solutions 19C100PV1K	Temperature Compensated	Vacuum	125 °C	-40 °C	No Port	Flex Cable	15 V			Cylinder	0.25 %	Analog Voltage	-689.48 kPa	-100 PSI	100 mV				Cell w/Body O-Ring					-2068.43 kPa	-300 PSI
Honeywell Sensing and Productivity Solutions 19C100PV5L	Temperature Compensated	Vacuum	125 °C	-40 °C	Threaded	Flex Cable				Cylinder Threaded	0.25 %	Analog Voltage	-689.48 kPa	-100 PSI	100 mV	Board Mount				NPT	0.25 "	6.35 mm	Male	-2068.43 kPa	-300 PSI
Honeywell Sensing and Productivity Solutions 19C100PG5K	Temperature Compensated	Vented Gauge	125 °C	-40 °C	Threaded	Flex Cable	15 V	2068.43 kPa	300 PSI	Cylinder Threaded	0.25 %	Analog Voltage	689.48 kPa	100 PSI	100 mV					NPT	0.25 "	6.35 mm	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 299.00

Description

General part information

19C100 Series

Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 1/8" (3.18mm) NPT 0 mV ~ 100 mV (10V) Cylinder, Threaded
