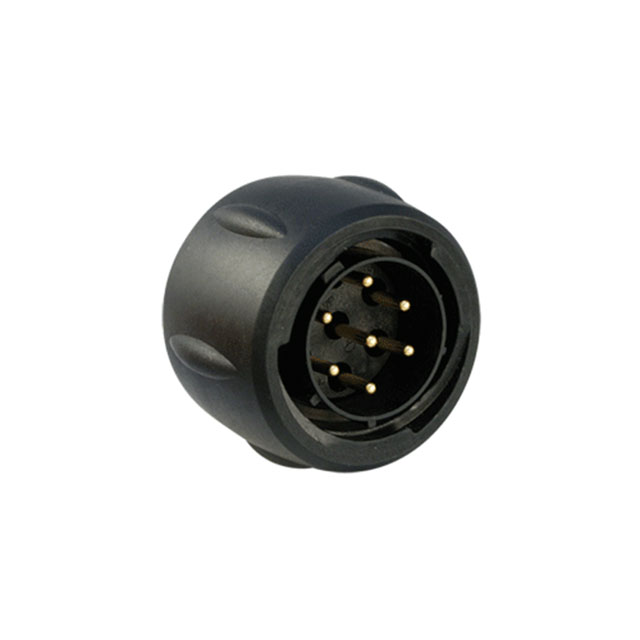

UTS6128P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS6128P

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS6128P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP69K, IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	12-8
Shielding	Unshielded
Type	For Male Pins

UTS61 Series

Part	Orientation	Current Rating (Amps)	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Fastening Type	Voltage Rating	Applications	Number of Positions	Color	Features	Mounting Type	Contact Finish - Mating	Shielding	Primary Material	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Contact Shape	Type	Contact Size	Housing Color	Termination
Souriau-Sunbank by Eaton UTS614E12SW	W	4.5 A	Female Sockets Plug	14-12	-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	250 VDC	Energy Instrumentation Lighting Telecommunications	12	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene
Souriau-Sunbank by Eaton UTS610E98SX	X	6 A	Female Sockets Plug		-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	250 VDC	Energy Instrumentation Lighting Telecommunications	6	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene	10	98
Souriau-Sunbank by Eaton UTS612E14P	N	4.5 A	Male Pins Plug		-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	250 VDC	Energy Instrumentation Lighting Telecommunications	14	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene	12	14
Souriau-Sunbank by Eaton UTS610E7P	N	6 A	Male Pins Plug	10-7	-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	250 VDC	Energy Instrumentation Lighting Telecommunications	7	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene
Souriau-Sunbank by Eaton UTS614E5P	N	12 A	Male Pins Plug	14-5	-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	600 V	Energy Instrumentation Lighting Telecommunications		Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene
Souriau-Sunbank by Eaton UTS614E15P	N	12 A	Male Pins Plug		-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	600 V	Energy Instrumentation Lighting Telecommunications	15	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene	14	15
Souriau-Sunbank by Eaton UTS6147P	N		Plug Housing		-40 °C	105 ░C		UL94 V-0	Bayonet Lock					Coupling Nut	Free Hanging (In-Line)		Unshielded		IP67 IP69K				7	14	Contacts Not Included	Crimp	1	6	Circular	For Male Pins	16	Black
Souriau-Sunbank by Eaton UTS614E5SW	W	12 A	Female Sockets Plug	14-5	-40 °C	105 ░C	Brass	UL94 V-0	Bayonet Lock	600 V	Energy Instrumentation Lighting Telecommunications		Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene
Souriau-Sunbank by Eaton UTS6124SSCR	N	10 A	Female Sockets Plug	12-4	-40 °C	105 ░C	Copper Alloy	UL94 V-0	Bayonet Lock	500 V	Energy Instrumentation Lighting Telecommunications	4	Black	Coupling Nut UV Resistant	Free Hanging (In-Line)	Gold	Unshielded	Plastic	IP68 IP69K	16 Áin	0.41 Ám	Polychloroprene											Screw
Souriau-Sunbank by Eaton UTS6128P	N		Plug Housing	12-8	-40 °C	105 ░C		UL94 V-0	Bayonet Lock			8		Coupling Nut	Free Hanging (In-Line)		Unshielded		IP67 IP69K						Contacts Not Included	Crimp			Circular	For Male Pins	16	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.90

Description

General part information

UTS61 Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

No documents available
