EX0800010000G

Active

Amphenol Anytek

EX 5.0 - 8P NL66 , BRASS BRIGHT

Search across all available documentation for this part.

Active

Amphenol Anytek

EX 5.0 - 8P NL66 , BRASS BRIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	EX0800010000G

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.132 in
Contact Tail Length	3.35 mm
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	9.5 mm
Insulation Height	0.374 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination Style	Solder
Type	Male Pins, Partial Shroud, Header
Voltage - UL	300 V

Part	Number of Levels	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Header Orientation	Insulation Height	Insulation Height	Type	Mounting Type	Contact Material	Contact Tail Length	Contact Tail Length	Number of Positions	Current - UL	Material Flammability Rating	Contact Mating Finish	Color	Pitch [x]	Pitch [x]	Voltage - UL	Termination Style	Positions Per Level
Amphenol Anytek EX0800010000G	1	Thermoplastic	-40 °C	115 °C	Vertical	9.5 mm	0.374 in	Header Male Pins Partial Shroud	Through Hole	Brass	0.132 in	3.35 mm	8	10 A	UL94 V-0	Tin	Black	5 mm	0.197 in	300 V	Solder
Amphenol Anytek EX0800000000G	1	Thermoplastic	-40 °C	115 °C	Vertical	9.5 mm	0.374 in	Header Male Pins Partial Shroud	Through Hole	Brass	0.134 in	3.4 mm	8	10 A	UL94 V-0		Black	5 mm	0.197 in	300 V	Solder	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

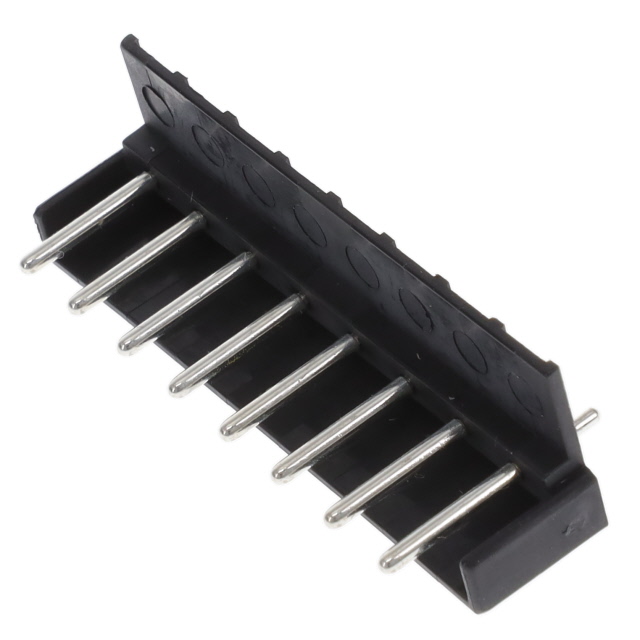

8 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
