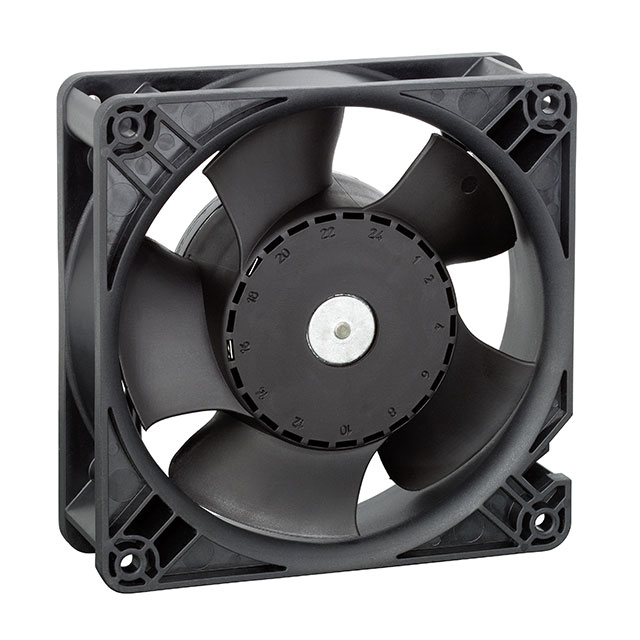

DV4114N

Active

ebm-papst Inc.

DC AXIAL FAN, 24 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 164.7 CFM

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC AXIAL FAN, 24 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 164.7 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	DV4114N

Air Flow	4.62 mł/min
Air Flow	164.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	61 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	20.5 W
RPM	6000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	16 VDC
Weight	375.12 g
Weight	0.827 lb
Width [y]	38 mm

DC Fans Tubeaxial, 119x38mm, 24VDC, 164.7CFM, 20.5W, 61dB, 6000RPM, Ball, Speed Signal

Part	Termination	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [x]	RPM	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Noise	Lifetime @ Temp.	Width [y]	Bearing Type	Material - Frame	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Voltage - Rated	Weight	Weight
ebm-papst Inc. DV4114/2N	3 Wire Leads	CE CSA UL VDE	Speed Sensor (Tach)	119 mm	119 mm	6000 RPM	Fiberglass Reinforced Nylon Polyamide (PA)	-20 °C	-20 C	65 °C	65 °C	Tubeaxial	61 dB(A)	70000 Hrs	38 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20.5 W	16 VDC	30 V	4.62 mł/min	165 CFM	24 VDC
ebm-papst Inc. DV4114N	2 Wire Leads	CE CSA UL VDE		119 mm	119 mm	6000 RPM	Fiberglass Reinforced Nylon Polyamide (PA)	-20 °C	-20 C	65 °C	65 °C	Tubeaxial	61 dB(A)	70000 Hrs	38 mm	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20.5 W	16 VDC	30 V	4.62 mł/min	164.9 CFM	24 VDC	375.12 g	0.827 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC Fans Tubeaxial, 119x38mm, 24VDC, 164.7CFM, 20.5W, 61dB, 6000RPM, Ball, Speed Signal
