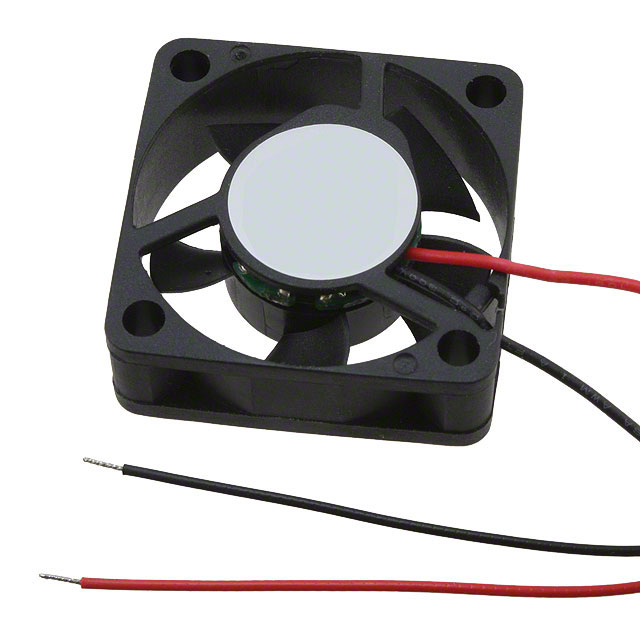

AFB0312HA-A

NRND

Delta Electronics

FAN AXIAL 30X10MM 12VDC WIRE

Search across all available documentation for this part.

NRND

Delta Electronics

FAN AXIAL 30X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Material - Blade	Voltage - Rated	Weight	Weight	Width [y]	Termination	Approval Agency	Material - Frame	Power (Watts)	Fan Type	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [x]	Size / Dimension [z]	Noise	RPM	Current Rating (Amps)	Bearing Type
Delta Electronics AFB0312HA-A	0.1 in H2O	24.9 Pa	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	Plastic	12 VDC	0.024 lb	10.89 g	10 mm	2 Wire Leads	CE CSA UL VDE	Plastic	1.08 W	Tubeaxial	0.098 mł/min	3.5 CFM	9.5 VDC	13.8 VDC	30 mm	30 mm	25 dB(A)	9000 RPM	0.09 A	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	720	$ 7.29

General part information

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Ball 3.5 CFM (0.098m³/min) 2 Wire Leads
