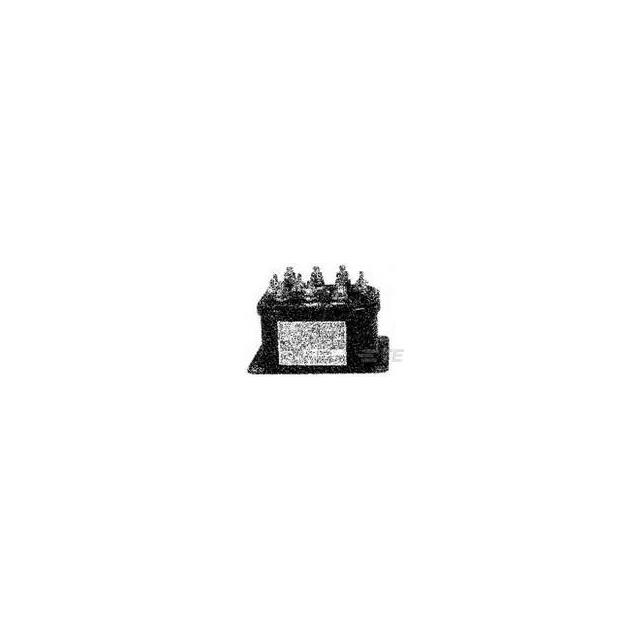

1-1616520-0

Active

TE Connectivity Aerospace, Defense and Marine

BH316C=RELAY

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

BH316C=RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	1-1616520-0

Coil Current	600 mA
Coil Power	16.8 W
Coil Resistance	46.7 Ohms
Coil Voltage	28 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	50 A
Features	Auxiliary Contacts, Sealed - Hermetically
Mounting Type	Chassis Mount
Must Operate Voltage	18 VDC
Must Release Voltage	1.5 VDC
Operate Time	25 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Release Time	10 ms
Switching Voltage	28 VDC, 115 VAC
Termination Style	Stud

Part	Release Time	Coil Voltage	Must Operate Voltage	Coil Current	Contact Rating (Current)	Features	Must Release Voltage	Termination Style	Contact Form	Coil Power	Operate Time	Coil Resistance	Mounting Type	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Coil Type
TE Connectivity Aerospace, Defense and Marine 1-1616520-0	10 ms	28 VDC	18 VDC	600 mA	50 A	Auxiliary Contacts Sealed - Hermetically	1.5 VDC	Stud	3PST-NO (3 Form A)	16.8 W	25 ms	46.7 Ohms	Chassis Mount	28 VDC 115 VAC	-55 °C	125 °C
TE Connectivity Aerospace, Defense and Marine 2-1616520-0		28 VDC	18 VDC		20 A		1 VDC	Stud	3PST-NO (3 Form A)				Chassis Mount	450 VAC	-55 °C	71 °C	General Purpose	Non Latching
