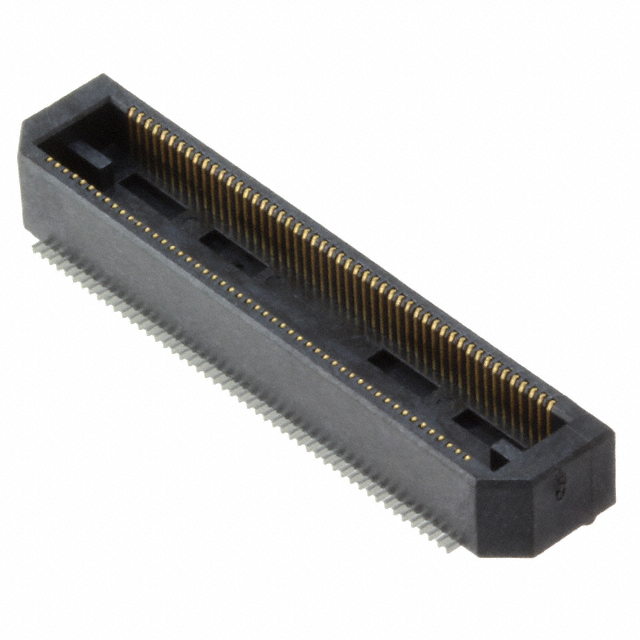

BTH-050-01-L-D-A-TR - BTH-050-01-L-D-A

BTH-050-01-L-D-A-TR

Active
Samtec Inc.

CONN HDR 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTH DatasheetBSH Series Other Related Documents 03+2
BTH-050-01-L-D-A-TR - BTH-050-01-L-D-A

BTH-050-01-L-D-A-TR

Active
Samtec Inc.

CONN HDR 100POS SMD GOLD

Deep-Dive with AI

DocumentsBTH DatasheetBSH Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationBTH-050-01-L-D-A-TR
Connector TypeHeader, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide
Mated Stacking Heights5 mm
Mounting TypeSurface Mount
Number of Positions100
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

BTH-050 Series

PartNumber of PositionsContact FinishContact Finish ThicknessContact Finish ThicknessMated Stacking HeightsHeight Above BoardHeight Above BoardNumber of RowsPitch [x]Pitch [x]Mounting TypeConnector TypeFeatures
Samtec Inc.
BTH-050-02-L-D-A
100
Gold
10 Áin
0.25 Ám
8 mm
7.26 mm
0.286 "
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-01-H-D-LC-TR
100
Gold
30 Áin
0.76 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Samtec Inc.
BTH-050-01-L-D-K-TR
100
Gold
10 Áin
0.25 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Samtec Inc.
BTH-050-01-C-D-A-K
100
Gold
50 µin
1.27 µm
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-01-L-D-A-TR
100
Gold
10 Áin
0.25 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-01-H-D-TR
100
Gold
30 Áin
0.76 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Samtec Inc.
BTH-050-01-L-D-A-K
100
Gold
10 Áin
0.25 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-01-F-D-A-TR
100
Gold
3 Áin
0.076 Ám
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-01-C-D-A
100
Gold
50 µin
1.27 µm
5 mm
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide
Samtec Inc.
BTH-050-02-F-D-A-K-TR
100
Gold
3 Áin
0.076 Ám
8 mm
7.26 mm
0.286 "
2
0.5 mm
0.02 in
Surface Mount
Header
Outer Shroud Contacts
Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 11.11
10$ 8.53
25$ 7.70
50$ 7.14
100$ 6.64
Digi-Reel® 1$ 11.11
10$ 8.53
25$ 7.70
50$ 7.14
100$ 6.64
Tape & Reel (TR) 425$ 5.73
850$ 5.36
1275$ 5.16

Description

General part information

BTH-050 Series

100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
