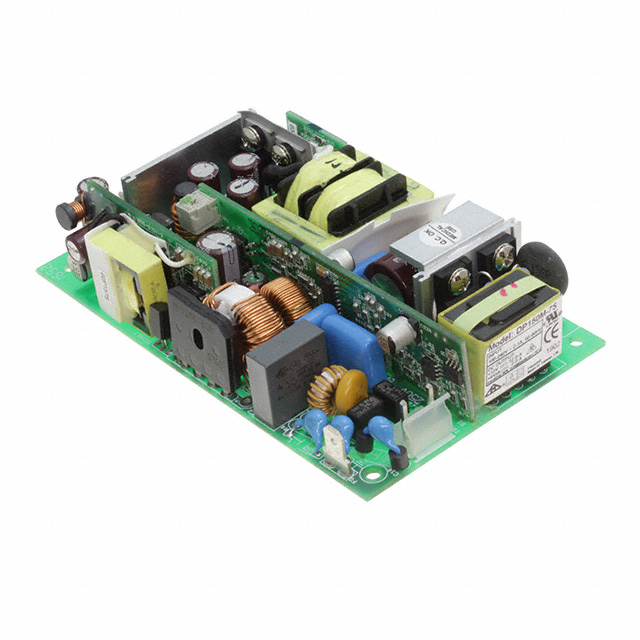

DP150M-7S

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 150W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	DP150M-7S

Applications	Medical
Approval Agency	CE, CB
Current - Output 1	12 A
Efficiency	89 %
Features	Remote Sense, Standby Output, PFC, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Power (Watts)	220 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	36.1 mm
Size / Dimension [z]	1.42 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Number of Outputs	Features	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Efficiency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Tri-Mag, LLC DP150M-7S	150 W	220 W	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	Open Frame	12 V	1	PFC Remote Sense Standby Output Universal Input	12 A	90 VAC	264 VAC	CB CE	89 %	Medical	-20 °C	70 °C	Chassis Mount
Tri-Mag, LLC DP150M-3S	150 W	220 W	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	Open Frame	18 V	1	PFC Remote Sense Standby Output Universal Input	8 A	90 VAC	264 VAC	CB CE	89 %	Medical	-20 °C	70 °C	Chassis Mount
Tri-Mag, LLC DP150M-JS	150 W	220 W	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	Open Frame	36 V	1	PFC Remote Sense Standby Output Universal Input	4 A	90 VAC	264 VAC	CB CE	89 %	Medical	-20 °C	70 °C	Chassis Mount
Tri-Mag, LLC DP150M-GS	150 W	220 W	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	Open Frame	28 V	1	PFC Remote Sense Standby Output Universal Input	5.1 A	90 VAC	264 VAC	CB CE	89 %	Medical	-20 °C	70 °C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
