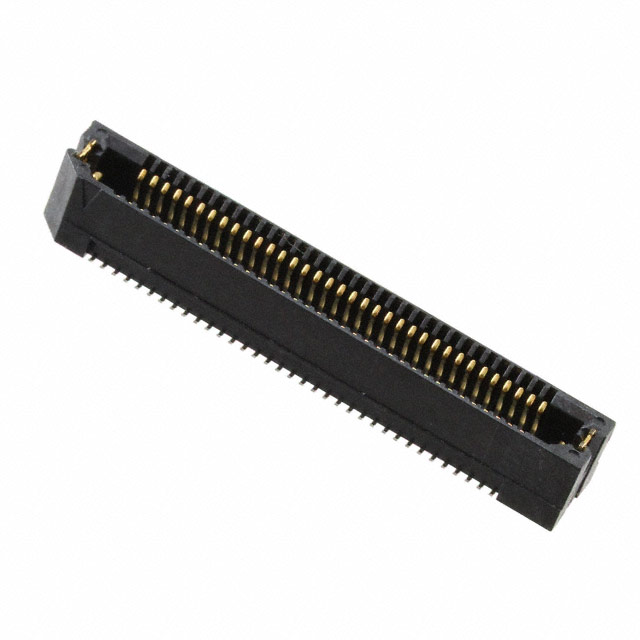

ASP-135029-01
ActiveSamtec Inc.
CONN SOCKET 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP-135029-01
ActiveSamtec Inc.
CONN SOCKET 70POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP-135029-01 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide, Pick and Place, Latches |
| Height Above Board | 0.206 in |
| Height Above Board | 5.23 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.77 | |
| 10 | $ 8.71 | |||
| 25 | $ 7.67 | |||
| 50 | $ 6.41 | |||
| 100 | $ 5.96 | |||
| 500 | $ 5.53 | |||
Description
General part information
135029-01 Series
70 Position Connector Socket, Center Strip Contacts Surface Mount Gold
