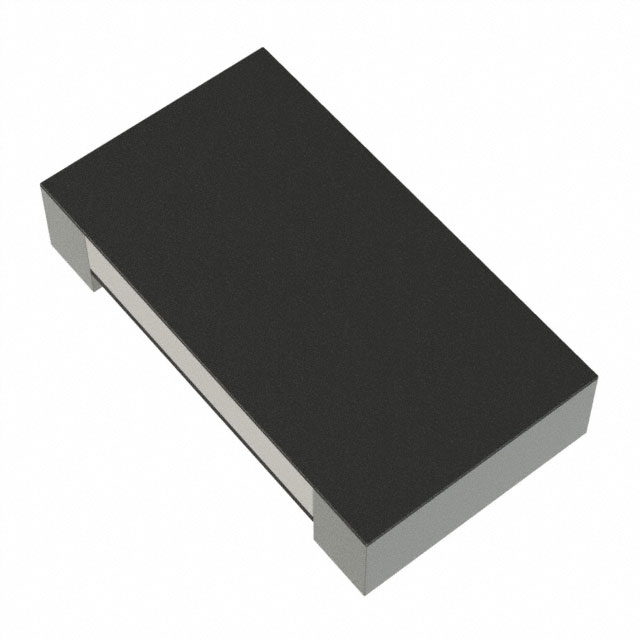

PE0805FRE470R02Z

Active

YAGEO

RES 0.02 OHM 1% 1/2W 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsChip Resistors Mounting Chip Resistor Marking +3

PE0805FRE470R02Z

Active

YAGEO

RES 0.02 OHM 1% 1/2W 0805

Deep-Dive with AI

DocumentsChip Resistors Mounting Chip Resistor Marking +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PE0805FRE470R02Z

Features	Current Sense
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	0.02 Ohms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

PE0805F Series

...

Part	Composition	Ratings	Features	Supplier Device Package	Temperature Coefficient	Package / Case	Number of Terminations	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
YAGEO PE0805FRM7T0R04L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	75 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.333 W	0.3333333333333333 W	170 °C	-55 °C
YAGEO PE0805FRF7T0R04L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	100 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.333 W	0.3333333333333333 W	170 °C	-55 °C
YAGEO PE0805FRF470R02L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	100 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.5 W	0.5 W	170 °C	-55 °C	0.02 Ohms
YAGEO PE0805FRM470R042L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	75 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.5 W	0.5 W	170 °C	-55 °C	42 mOhms
YAGEO PE0805FRM070R02Z			Current Sense	0805	75 ppm/°C	0805	2	1 %	2 mm	0.079 in	0.049 in	1.25 mm	0.85 mm	0.033 "		0.125 W	170 °C	-55 °C	0.02 Ohms	0.125 W
YAGEO PE0805FRM470R028L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	75 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.5 W	0.5 W	170 °C	-55 °C	28 mOhms
YAGEO PE0805FRF470R013L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	100 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.5 W	0.5 W	170 °C	-55 °C	13 mOhms
YAGEO PE0805FRE470R02Z			Current Sense	0805	50 ppm/°C	0805	2	1 %	2 mm	0.079 in	0.049 in	1.25 mm	0.85 mm	0.033 "	0.5 W	0.5 W	170 °C	-55 °C	0.02 Ohms
YAGEO PE0805FRM470R11L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	75 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm			0.5 W	0.5 W	170 °C	-55 °C	110 mOhms		0.026 in	0.65 mm
YAGEO PE0805FRF470R03L	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	0805	100 ppm/°C	0805	2	1 %	2.03 mm	0.08 "	0.05 "	1.27 mm	0.6 mm	0.024 in	0.5 W	0.5 W	170 °C	-55 °C	0.03 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.25
		10	$ 0.16
		25	$ 0.13
		50	$ 0.12
		100	$ 0.10
		250	$ 0.09
		500	$ 0.08
		1000	$ 0.07
	Digi-Reel®	1	$ 0.25
		10	$ 0.16
		25	$ 0.13
		50	$ 0.12
		100	$ 0.10
		250	$ 0.09
		500	$ 0.08
		1000	$ 0.07
	Tape & Reel (TR)	5000	$ 0.06
		10000	$ 0.05
		15000	$ 0.05
		25000	$ 0.05
		35000	$ 0.05
		50000	$ 0.05
		125000	$ 0.04

Description

General part information

PE0805F Series

20 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Foil

PE0805FRE470R02Z

Deep-Dive with AI

PE0805FRE470R02Z

Deep-Dive with AI

Technical Specifications

PE0805F Series

Pricing

Description

PE0805F Series

Documents

Chip Resistors Mounting

Chip Resistor Marking

Standard Resistance Value in Decade

Chip Resistor Packing

Datasheet

PE0805F Series
