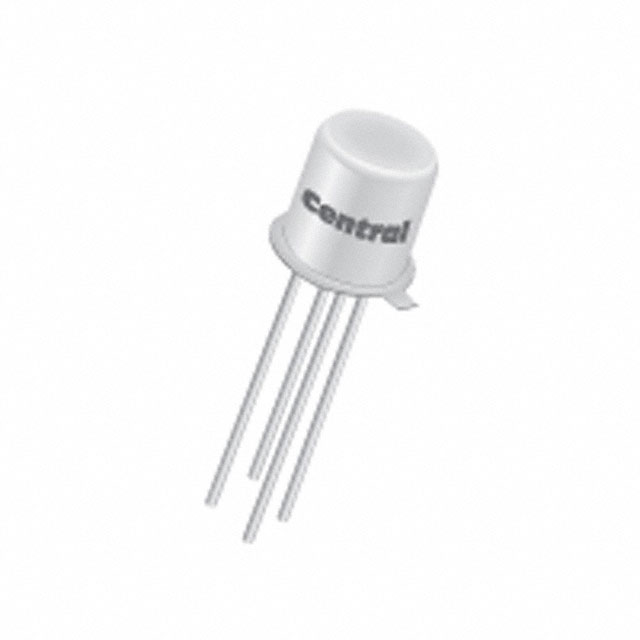

BFY90 PBFREE

Active

Central Semiconductor Corp

RF TRANS NPN 15V 1.4GHZ TO72

Search across all available documentation for this part.

Active

Central Semiconductor Corp

RF TRANS NPN 15V 1.4GHZ TO72

Technical Specifications

Parameters and characteristics for this part

Specification	BFY90 PBFREE

Current - Collector (Ic) (Max) [Max]	25 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	20
Frequency - Transition	1.4 GHz
Gain	23 dBi
Mounting Type	Through Hole
Noise Figure (dB Typ @ f)	5.5 dB
Package / Case	TO-206AF, TO-72-4 Metal Can
Power - Max [Max]	200 mW
Supplier Device Package	TO-72
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	15 V

Part	Gain	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Power - Max [Max]	Noise Figure (dB Typ @ f)	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Mounting Type	Transistor Type
Central Semiconductor Corp BFY90 PBFREE	23 dBi	25 mA	1.4 GHz	200 mW	5.5 dB	15 V	TO-72	20	TO-206AF TO-72-4 Metal Can	Through Hole	NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transistor NPN 15V 25mA 1.4GHz 200mW Through Hole TO-72
