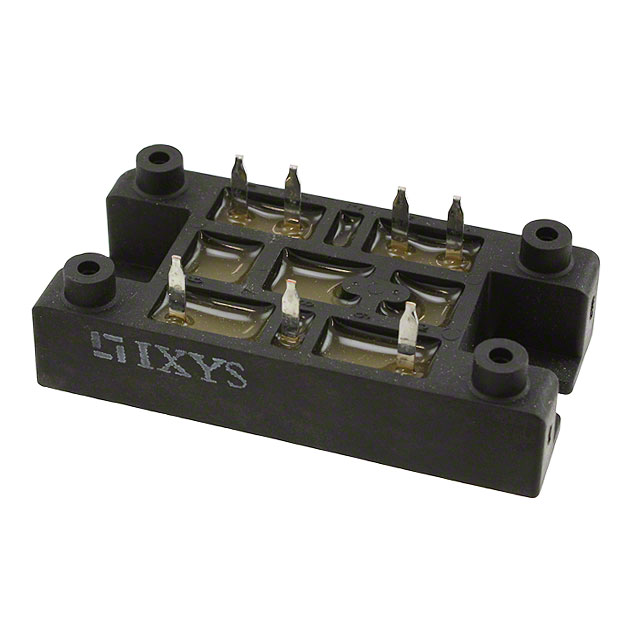

VUO52-12NO1

Active

IXYS

BRIDGE RECT 3P 1.2KV 54A V1-A

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 1.2KV 54A V1-A

Technical Specifications

Parameters and characteristics for this part

Specification	VUO52-12NO1

Current - Average Rectified (Io)	54 A
Current - Reverse Leakage @ Vr	40 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Supplier Device Package	V1-A
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.13 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Average Rectified (Io)	Technology	Voltage - Peak Reverse (Max)	Diode Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Package / Case
IXYS VUO52-16NO1	40 µA	V1-A	150 °C	-40 °C	Chassis Mount	54 A	Standard	1.6 kV	Three Phase	1.13 V
IXYS VUO52-12NO1	40 µA	V1-A	150 °C	-40 °C	Chassis Mount	54 A	Standard		Three Phase	1.13 V	1.2 kV
IXYS VUO52-08NO1	40 µA	V1-A	150 °C	-40 °C	Chassis Mount	54 A	Standard		Three Phase	1.13 V	800 V
IXYS VUO52-22NO1	40 µA	V1A-PAK	150 °C	-40 °C	Chassis Mount	60 A	Standard		Three Phase	1.13 V	2.2 kV	V1A-PAK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Chassis Mount V1-A
