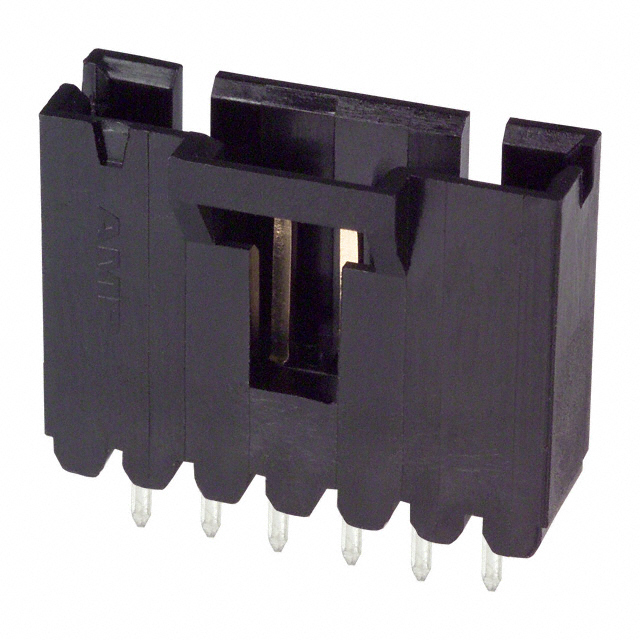

103638-5

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

103638-5

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	103638-5

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

103638 Series

Part	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Insulation Material	Contact Material	Style	Mounting Type	Number of Positions	Contact Type	Contact Shape	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Applications
TE Connectivity Raychem Cable Protection 103638-5	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	13.6 mm	0.535 in	Gold	Header	0.13 in	3.3 mm	Latch Holder	All	Thermoplastic	Brass	Board to Board Cable	Through Hole	6	Male Pin	Square	Shrouded - 4 Wall	Tin-Lead	15 µin	0.38 µm	Keying Slot	Solder	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications
TE Connectivity Raychem Cable Protection 103638-9	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	13.6 mm	0.535 in	Gold	Header	0.13 in	3.3 mm	Latch Holder	All	Thermoplastic	Brass	Board to Board Cable	Through Hole	10	Male Pin	Square	Shrouded - 4 Wall	Tin-Lead	15 µin	0.38 µm	Keying Slot	Solder	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications
TE Connectivity Raychem Cable Protection 103638-3	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	13.6 mm	0.535 in	Gold	Header	0.13 in	3.3 mm	Latch Holder	All	Thermoplastic	Brass	Board to Board Cable	Through Hole	4	Male Pin	Square	Shrouded - 4 Wall	Tin-Lead	15 µin	0.38 µm	Keying Slot	Solder	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications
TE Connectivity Raychem Cable Protection 1-103638-9	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	13.6 mm	0.535 in	Gold	Header	0.13 in	3.3 mm	Latch Holder	All	Thermoplastic	Brass	Board to Board Cable	Through Hole	20	Male Pin	Square	Shrouded - 4 Wall	Tin-Lead	15 µin	0.38 µm	Keying Slot	Solder	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications
TE Connectivity Raychem Cable Protection 103638-6	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	13.6 mm	0.535 in	Gold	Header	0.13 in	3.3 mm	Latch Holder	All	Thermoplastic	Brass	Board to Board Cable	Through Hole	7	Male Pin	Square	Shrouded - 4 Wall	Tin-Lead	15 µin	0.38 µm	Keying Slot	Solder	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.22
		30	$ 0.96
		120	$ 0.87
		510	$ 0.79
		1020	$ 0.75
		5010	$ 0.67
		10020	$ 0.64

Description

General part information

103638 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)
