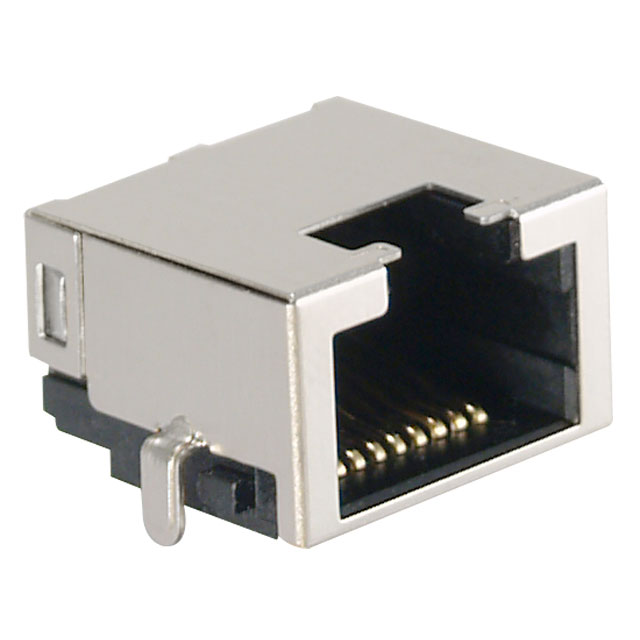

GMJXHT-MM-S-88

Active

Kycon, Inc.

8P8C MOD JACK, MIDMOUNT, SHIELDE

Search across all available documentation for this part.

Active

Kycon, Inc.

8P8C MOD JACK, MIDMOUNT, SHIELDE

Technical Specifications

Parameters and characteristics for this part

Specification	GMJXHT-MM-S-88

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Mid Mount, Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Tab Direction	Housing Material	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	LED Color	Contact Material	Number of Rows	Orientation	Termination	Connector Type	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish	Shielding
Kycon, Inc. GMJXHT-MM-S-88	Up	Thermoplastic	1	85 °C	-40 °C	Mid Mount Through Hole	Does Not Contain LED	Phosphor Bronze	1	90 °	Solder	Jack	8p8c (RJ45 Ethernet)	Flash	Gold	Shielded
