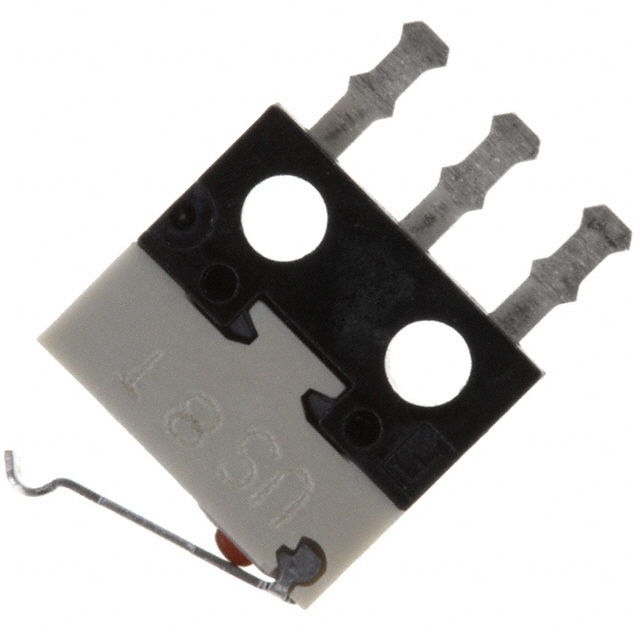

US10D10E00
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
US10D10E00
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US10D10E00 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.028 in |
| Differential Travel | 0.7 mm |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position [custom] | 6.7 mm |
| Operating Position [custom] | 0.264 " |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.3 mm |
| Overtravel | 0.011 in |
| Pretravel | 0.087 in |
| Pretravel | 2.2 mm |
| Release Force | 2 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
US10D Series
| Part | Operating Position [custom] | Operating Position [custom] | Termination Style | Circuit | Release Force | Overtravel | Overtravel | Differential Travel | Differential Travel | Current Rating (Amps) | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Operating Force | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 6.7 mm | 0.264 " | Solder Lug | SPDT | 2 gf | 0.3 mm | 0.011 in | 0.028 in | 0.7 mm | 100 mA | Lever Simulated Roller | -25 °C | 80 C | On-Mom | 30 V | Chassis Mount | 125 V | 30 gf | 0.087 in | 2.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
US10D Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
