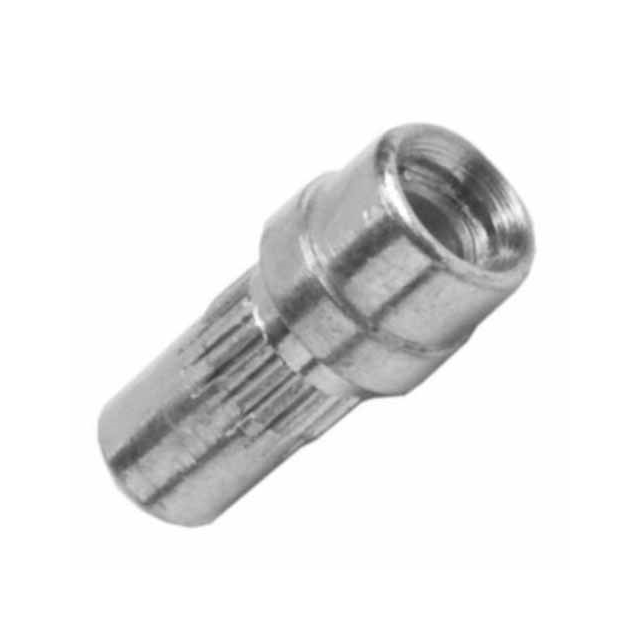

H3165-46

Active

Harwin Inc.

1 MM PC BOARD SOCKET (ROHS) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

1 MM PC BOARD SOCKET (ROHS) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3165-46

Accepts Pin Diameter [Max]	1.05 mm
Accepts Pin Diameter [Max]	0.041 "
Accepts Pin Diameter [Min]	0.035 "
Accepts Pin Diameter [Min]	0.89 mm
Contact Finish	Tin
Contact Finish Thickness [custom]	4 µm
Contact Finish Thickness [custom]	157.5 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.67 mm
Flange Diameter [diameter]	0.105 in
Insertion Force [Max]	9 N
Insertion Force [Min]	3 N
Length - Overall [x]	0.222 in
Length - Overall [x]	5.65 mm
Mounting Hole Diameter [Max]	1.96 mm, 0.077 "
Mounting Hole Diameter [Min]	1.91 mm, 0.075 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Tail Type	No Tail
Termination	Knurled, Press-Fit

Part	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish	Insertion Force [Max]	Insertion Force [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness [custom]	Contact Finish Thickness [custom]
Harwin Inc. H3165-05	0.077 " 1.96 mm	0.075 " 1.91 mm	0.222 in	5.65 mm	2.67 mm	0.105 in	No Tail	Beryllium Copper	1.05 mm	0.041 "	0.035 "	0.89 mm	Gold	9 N	3 N	-55 °C	125 °C	Knurled Press-Fit	5.9 µin	0.15 µm
Harwin Inc. H3165-46	0.077 " 1.96 mm	0.075 " 1.91 mm	0.222 in	5.65 mm	2.67 mm	0.105 in	No Tail	Beryllium Copper	1.05 mm	0.041 "	0.035 "	0.89 mm	Tin	9 N	3 N	-55 °C	125 °C	Knurled Press-Fit			4 µm	157.5 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	16000	$ 0.16
Newark	Each	1000	$ 0.22

General part information

Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit, Knurled
