EXN-23350-BKP

Active

BUD INDUSTRIES

BOX ALUM BLACK 2.71"L X 1.93"W

Search across all available documentation for this part.

Active

BUD INDUSTRIES

BOX ALUM BLACK 2.71"L X 1.93"W

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23350-BKP

Area (L x W)	33.6 cm²
Area (L x W)	5.21 in²
Color	Black
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	1.386 in
Height [z]	35.2 mm
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	2.705 in
Size / Dimension [x]	68.7 mm
Size / Dimension [y]	49 mm
Size / Dimension [y]	1.929 in
Thickness	0.091 in
Thickness	2.3 mm
Weight	0.15 lbs
Weight	68.04 g

Part	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Color	Material	Features	Container Type	Ratings	Weight	Weight
BUD INDUSTRIES EXN-23350-BKP	1.386 in	35.2 mm	49 mm	2.705 in	68.7 mm	1.929 in	0.091 in	2.3 mm	End Panel(s)	UL94 V-0	33.6 cm²	5.21 in²	Black	Aluminum with Plastic Metal Polycarbonate Panels	Card Guides Sealing Gaskets	Box	IP66	0.15 lbs	68.04 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

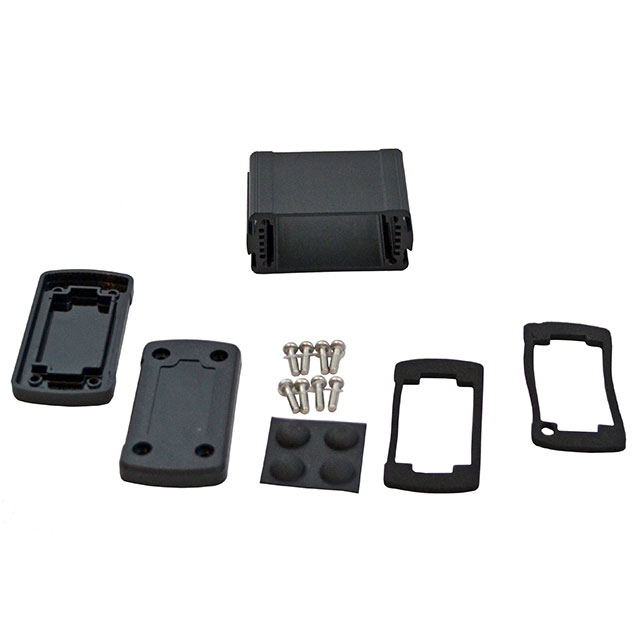

Box Metal, Aluminum with Plastic, Polycarbonate Panels Black End Panel(s) 2.705" L x 1.929" W (68.70mm x 49.00mm) X 1.386" (35.20mm)
