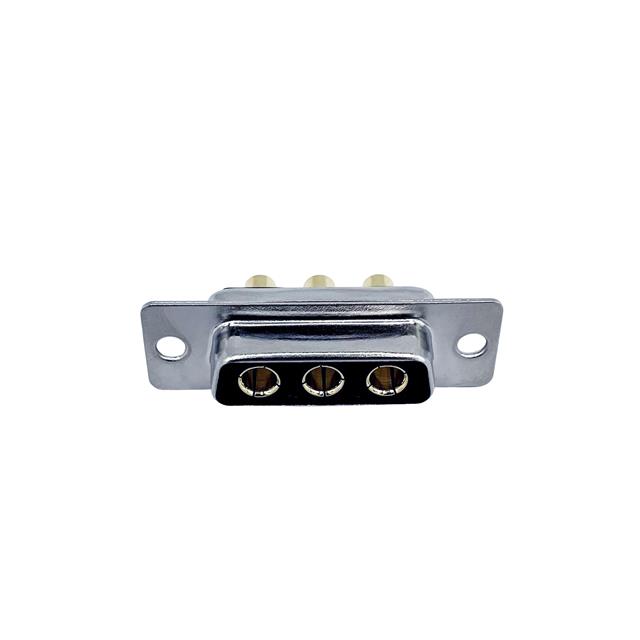

681M3W3203L151

Active

MH Connectors

CONN D-SUB RCPT 3P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

681M3W3203L151

Active

MH Connectors

CONN D-SUB RCPT 3P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	681M3W3203L151

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	250 VDC

681M3W3 Series

Part	Shell Material, Finish	Contact Finish Thickness	Connector Style	Dielectric Material	Number of Rows	Mounting Type	Flange Feature	Voltage Rating	Material Flammability Rating	Termination	Number of Positions	Contact Finish	Contact Material	Contact Type	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Features
MH Connectors 681M3W3203L151	Nickel Plated Steel	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT)	1	Panel Mount Through Hole	4-40 Board Side	250 VDC	UL94 V-0	Solder	3	Gold	Copper Alloy	Power	40 A	2 (DA A)	3W3	-55 °C	125 °C	Black	Receptacle Female Sockets
MH Connectors 681M3W3103L141	Nickel Plated Steel	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT)	1	Panel Mount Through Hole	4-40 Board Side	250 VDC	UL94 V-0	Solder	3	Gold	Copper Alloy	Power	40 A	2 (DA A)	3W3	-55 °C	125 °C	Black	Male Pins Plug	Board Lock Grounding Indents
MH Connectors 681M3W3203L141	Nickel Plated Steel	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT)	1	Panel Mount Through Hole	4-40 Board Side	250 VDC	UL94 V-0	Solder	3	Gold	Copper Alloy	Power	40 A	2 (DA A)	3W3	-55 °C	125 °C	Black	Receptacle Female Sockets
MH Connectors 681M3W3103L101	Nickel Plated Steel	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT)	1	Panel Mount Through Hole	Housing/Shell (Unthreaded)	250 VDC	UL94 V-0	Solder	3	Gold	Copper Alloy	Power	40 A	2 (DA A)	3W3	-55 °C	125 °C	Black	Male Pins Plug	Grounding Indents
MH Connectors 681M3W3103L111	Nickel Plated Steel	Flash	Combo D-Sub	Polybutylene Terephthalate (PBT)	1	Panel Mount Through Hole	4-40 Board Side	250 VDC	UL94 V-0	Solder	3	Gold	Copper Alloy	Power	40 A	2 (DA A)	3W3	-55 °C	125 °C	Black	Male Pins Plug	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	70	$ 9.44

Description

General part information

681M3W3 Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
