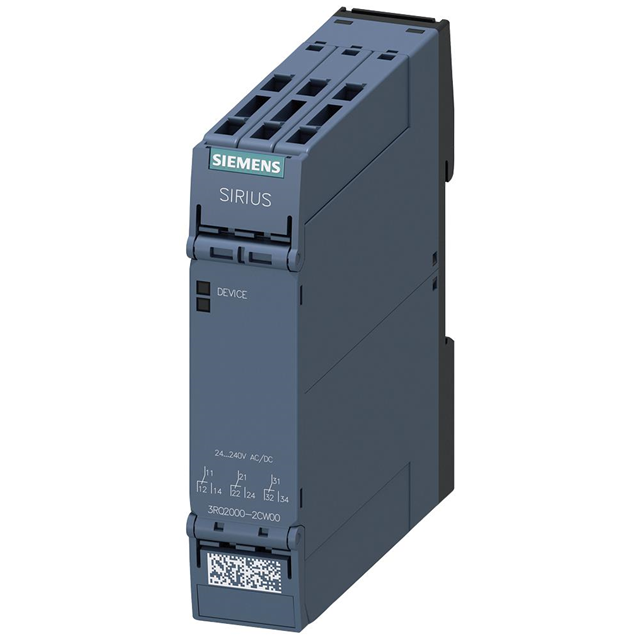

3RQ20002CW00
ActiveSiemens
COUPLING RELAY IM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3RQ20002CW00
ActiveSiemens
COUPLING RELAY IM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RQ20002CW00 |
|---|---|
| Coil Voltage [Max] | 240 VAC |
| Coil Voltage [Min] | 24 VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 5 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 100 ms |
| Switching Voltage [Max] | 300 VAC |
| Termination Style | Spring Terminal |
3RQ2000 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Rating (Current) | Contact Material | Switching Voltage [Max] | Termination Style | Features | Contact Form | Release Time | Coil Voltage [Min] | Coil Voltage [Max] | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Tin Oxide (AgSnO) | 300 VAC | Screw Terminal | Auxiliary Contacts | DPDT (2 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Tin Oxide (AgSnO) | 300 VAC | Spring Terminal | Auxiliary Contacts | 3PDT (3 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Tin Oxide (AgSnO) | 300 VAC | Spring Terminal | Auxiliary Contacts | SPDT (1 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Nickel (AgNi) | 300 VAC | Spring Terminal | Auxiliary Contacts | 3PDT (3 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Tin Oxide (AgSnO) | 300 VAC | Spring Terminal | Auxiliary Contacts | DPDT (2 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Tin Oxide (AgSnO) | 300 VAC | Screw Terminal | Auxiliary Contacts | 3PDT (3 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Siemens | -40 °C | 60 °C | Chassis Mount DIN Rail | 5 A | Silver Nickel (AgNi) | 300 VAC | Screw Terminal | Auxiliary Contacts | 3PDT (3 Form C) | 100 ms | 24 VAC | 240 VAC | 10 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.08 | |
Description
General part information
3RQ2000 Series
COUPLING RELAY IM
