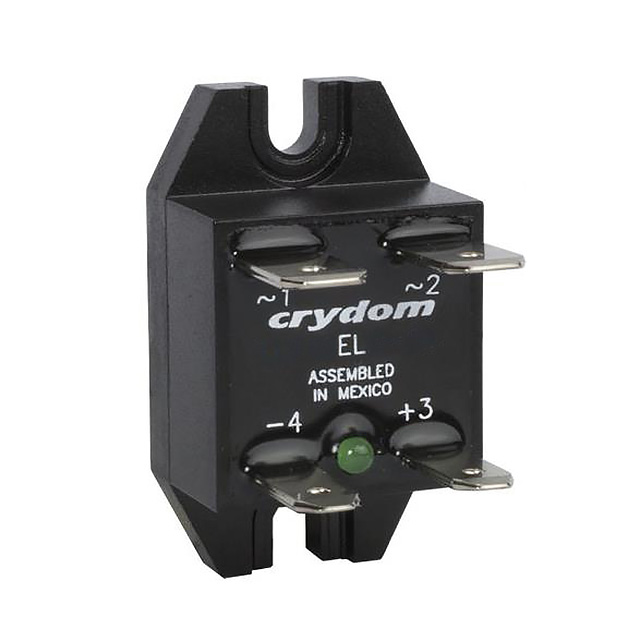

EL240A5R-24
ActiveSensata-Crydom
SSR RELAY SPST-NO 5A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
EL240A5R-24
ActiveSensata-Crydom
SSR RELAY SPST-NO 5A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EL240A5R-24 |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Load Current | 5 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Voltage - Input [Max] | 27 V |
| Voltage - Input [Min] | 21 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.08 | |
| 10 | $ 37.22 | |||
| 50 | $ 35.53 | |||
| 100 | $ 34.49 | |||
Description
General part information
EL240A5 Series
Solid State SPST-NO (1 Form A) Module
