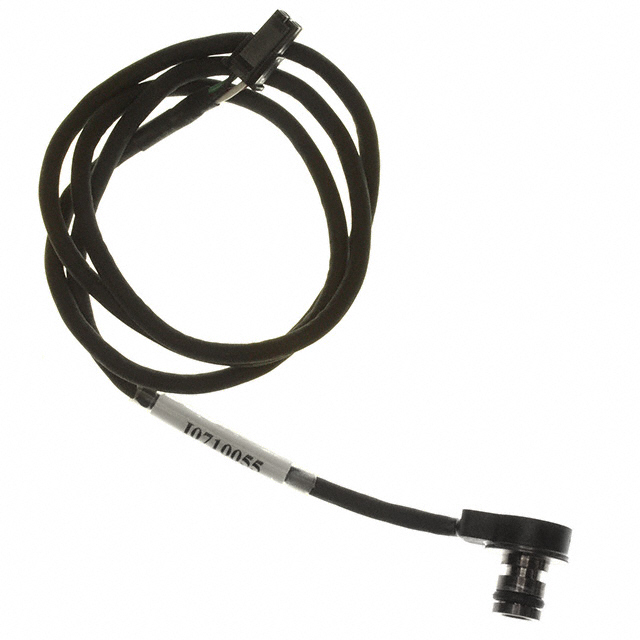

MS1S1-00000J-250PG
ActiveTE Connectivity Measurement Specialties
SENSOR 250PSIG O-RING SPI 2'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS1S1-00000J-250PG |
|---|---|
| Accuracy | 0.2 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 375 PSI |
| Maximum Pressure | 2585.53 kPa |
| Operating Pressure | 250 PSI |
| Operating Pressure | 1723.69 kPa |
| Output | 14 b |
| Output Type | SPI |
| Package / Case | Cylinder, Threaded |
| Port Size | 7.62 mm, 0.3 " |
| Port Size | O-Ring, Male |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Termination Style | Cable 2' |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.76 | |
| 5 | $ 51.02 | |||
Description
General part information
MS1S1 Series
SENSOR 250PSIG O-RING SPI 2'
