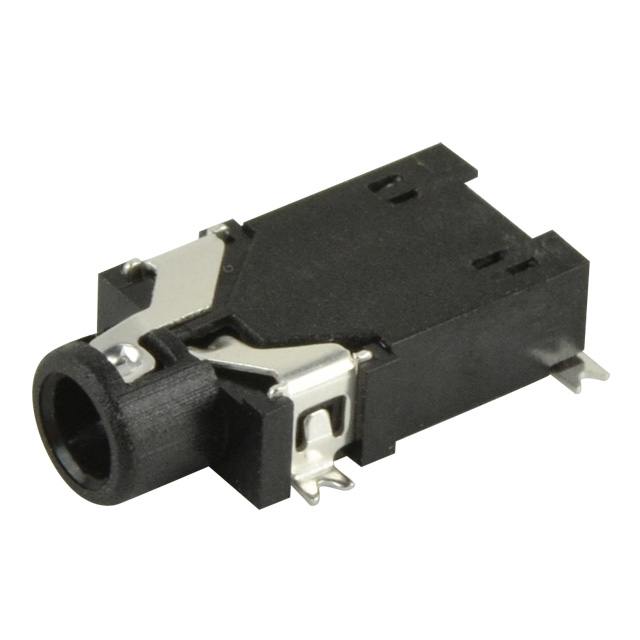

SJ2-25954B-SMT-TR

Obsolete

CUI Devices

AUDIO JACK, 2.5 MM, RT, 4 CONDUC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ2-25954B-SMT-TR

Obsolete

CUI Devices

AUDIO JACK, 2.5 MM, RT, 4 CONDUC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ2-25954B-SMT-TR

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	1 A
Features	Board Guide
Gender	Female
Housing Material	Polyamide (PA10T), Nylon 10T
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Single Switch
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	5
Number of Positions/Contacts [custom]	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	12 VDC

SJ2-25 Series

Part	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Signal Lines	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Gender	Current Rating (Amps)	Contact Material - Plating [custom]	Termination	Contact Material	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mounting Type	Housing Material	Connector Type	Body Color	Internal Switch(s)	Signal Lines
CUI Devices SJ2-25414A-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Brass Copper Alloy	12 VDC	4	4	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black
CUI Devices SJ2-25994C-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Copper Alloy	12 VDC	4	5	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black	Single Switch
CUI Devices SJ2-2594A-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Silver	Solder	Copper Alloy	12 VDC	4	4	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black
CUI Devices SJ2-25414B-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Brass Copper Alloy	12 VDC	4	5	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black	Single Switch
CUI Devices SJ2-25414C-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Brass Copper Alloy	12 VDC	4	5	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black	Single Switch
CUI Devices SJ2-25974A-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Copper Alloy	12 VDC	4	4	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black
CUI Devices SJ2-25954B-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Silver	Solder	Brass Copper Alloy	12 VDC	4	5	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black	Single Switch
CUI Devices SJ2-2555D-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide		0.094 in	2.5 mm	3 /32"	Female	1 A	Silver	Solder	Brass Copper Alloy	12 VDC	5 Conductors	7 Contacts	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black	Two Switches	5 Conductor
CUI Devices SJ2-2555A-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide		0.094 in	2.5 mm	3 /32"	Female	1 A	Silver	Solder	Brass Copper Alloy	12 VDC	5 Conductors	5	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black		5 Conductor
CUI Devices SJ2-25964A-SMT-TR	2.6 mm	0.102 in	Unshielded	-25 °C	85 °C	Board Guide	Stereo	0.094 in	2.5 mm	3 /32"	Female	1 A	Gold	Solder	Copper Alloy	12 VDC	4	4	Surface Mount Right Angle	Polyamide (PA10T) Nylon 10T	Phone Jack	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.23
		10	$ 1.04
		25	$ 1.00
		50	$ 0.98
		100	$ 0.94

Description

General part information

SJ2-25 Series

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
