RClamp0506T.TCT

Active

Semtech Corporation

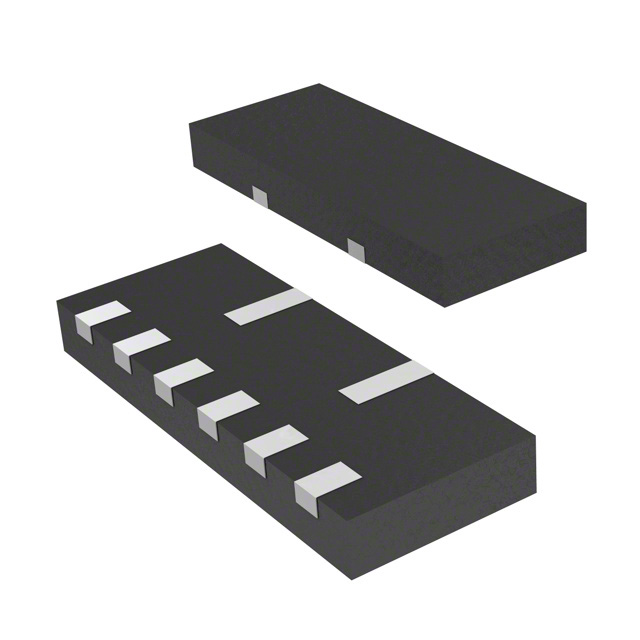

ESD PROTECTION DEVICE, 15 V, SLP3313P6T, 8 PINS, 5 V, 0.8 PF

Search across all available documentation for this part.

Active

Semtech Corporation

ESD PROTECTION DEVICE, 15 V, SLP3313P6T, 8 PINS, 5 V, 0.8 PF

Technical Specifications

Parameters and characteristics for this part

Specification	RClamp0506T.TCT

Applications	HDMI
Capacitance @ Frequency	0.7 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	8-XFDFN
Power - Peak Pulse	75 W
Power Line Protection	True
Supplier Device Package	SLP3313P6T
Type	Steering
Unidirectional Channels [custom]	6
Voltage - Breakdown (Min) [Min]	6.5 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Type	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Package / Case	Power Line Protection	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Mounting Type
Semtech Corporation RClamp0506T.TCT	Steering	6	15 V	HDMI	5 A	SLP3313P6T	8-XFDFN		75 W	5 V	125 ¯C	-55 °C	6.5 V	0.7 pF	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transient protection for high-speed data lines toIEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)
