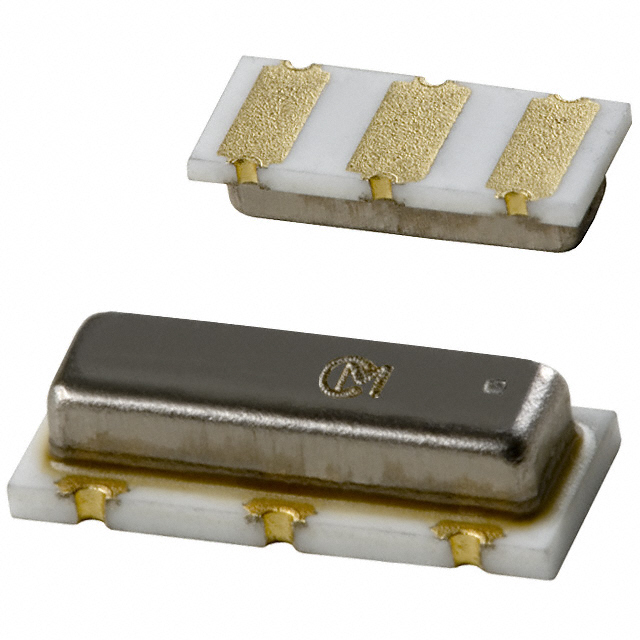

CSTCC3M58G53A-R0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 3.5800MHZ 15PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

CSTCC3M58G53A-R0

Obsolete

Murata Power Solutions Inc.

CERAMIC RES 3.5800MHZ 15PF SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTCC3M58G53A-R0

Capacitance	15 pF
Features	Built in Capacitor
Frequency	3.58 MHz
Frequency Stability	0.4 %
Frequency Tolerance	0.5 %
Height [z]	0.063 in
Height [z]	1.6 mm
Impedance	50 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SMD, Non-Standard
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Type	Ceramic

CSTCC Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Height [z]	Height [z]	Type	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Frequency Tolerance	Package / Case	Mounting Type	Features	Frequency Stability	Impedance
Murata Power Solutions Inc. CSTCC8M00G53-R0	-20 C	80 C	1.55 mm	0.061 in	Ceramic	8 MHz	0.283 in	0.118 in	7.2 mm	3 mm	15 pF	0.5 %	3-SMD Non-Standard	Surface Mount	Built in Capacitor
Murata Power Solutions Inc. CSTCC9M83G53A-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC7M16G53-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC6M14G53-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC2M45G53-R0	-20 C	80 C			Ceramic	2.45 MHz	0.283 in	0.118 in	7.2 mm	3 mm	15 pF	0.5 %	3-SMD Non-Standard	Surface Mount	Built in Capacitor	0.3 %
Murata Power Solutions Inc. CSTCC3M58G53A-R0	-40 °C	125 °C	1.6 mm	0.063 in	Ceramic	3.58 MHz	0.283 in	0.118 in	7.2 mm	3 mm	15 pF	0.5 %	3-SMD Non-Standard	Surface Mount	Built in Capacitor	0.4 %	50 Ohms
Murata Power Solutions Inc. CSTCC6M40G53-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC3M68G53Z-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC7M50G53A-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount
Murata Power Solutions Inc. CSTCC8M66G53A-R0			1.55 mm	0.061 in			0.283 in	0.118 in	7.2 mm	3 mm			3-SMD Non-Standard	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CSTCC Series

3.58 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.4% 50 Ohms -40°C ~ 125°C Surface Mount
