AP22916CCA4-7
ActiveDiodes Inc

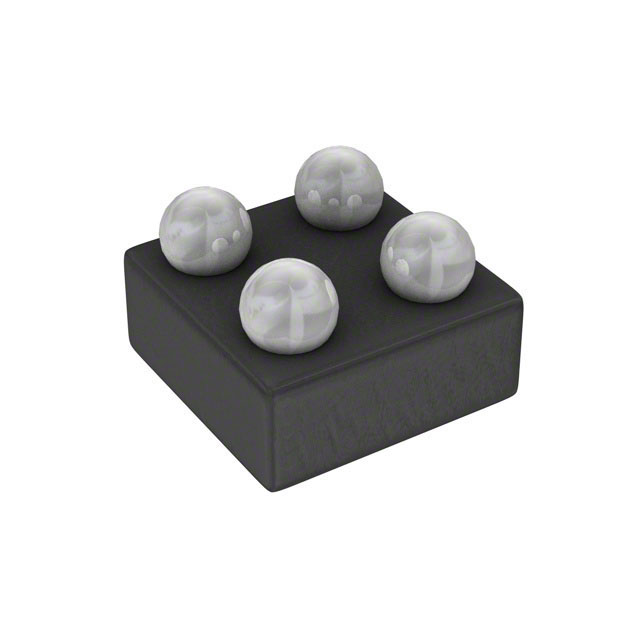

POWER SWITCH SLOW SIDE 2A 1.3V TO 5.5V 4-PIN X1-WLB0808 T/R
Deep-Dive with AI
Search across all available documentation for this part.
AP22916CCA4-7
ActiveDiodes Inc
POWER SWITCH SLOW SIDE 2A 1.3V TO 5.5V 4-PIN X1-WLB0808 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP22916CCA4-7 |
|---|---|
| Current - Output (Max) [Max] | 2 A |
| Fault Protection | UVLO, Over Temperature, Reverse Current |
| Features | Slew Rate Controlled, Load Discharge |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Package / Case | WLBGA, 4-XFBGA |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 60 mOhm |
| Supplier Device Package | X1-WLB0808-4 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 1.3 V |
| Voltage - Supply (Vcc/Vdd) | False |
