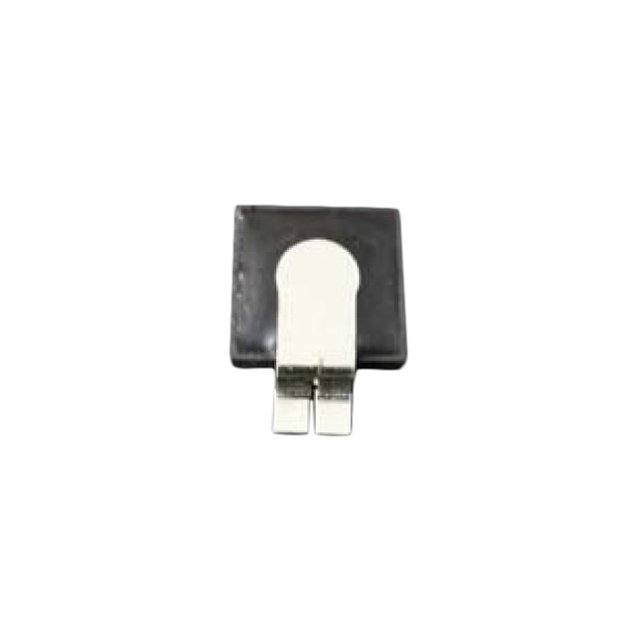

122SPC030A

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 120A SPD-3A

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 30V 120A SPD-3A

Technical Specifications

Parameters and characteristics for this part

Specification	122SPC030A

Current - Average Rectified (Io)	120 A
Current - Reverse Leakage @ Vr	12 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SPD-3A
Speed	200 mA, 500 ns
Supplier Device Package	SPD-3A
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	530 mV

Part	Technology	Current - Reverse Leakage @ Vr	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)
SMC Diode Solutions 122SPC030A	Schottky	12 mA	SPD-3A	30 V	530 mV	Surface Mount	SPD-3A	200 mA 500 ns	150 °C	-55 °C	120 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3600	$ 7.67

General part information

Diode 30 V 120A Surface Mount SPD-3A
