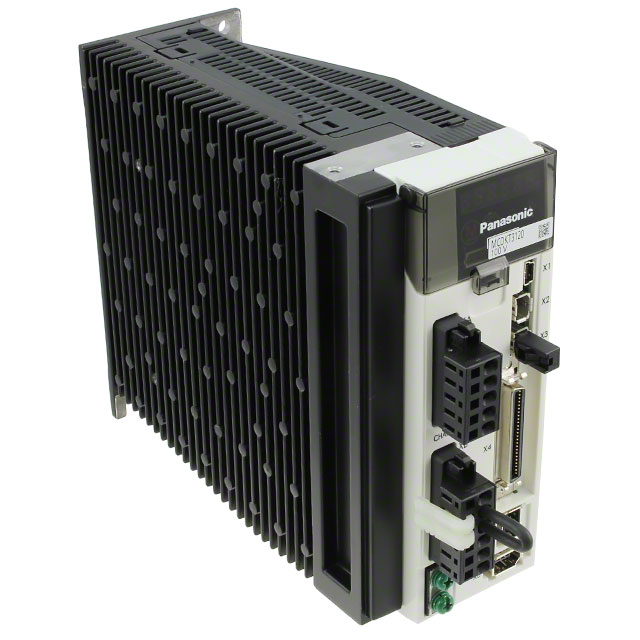

MCDKT3120

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 30A 120V LOAD

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 30A 120V LOAD

Technical Specifications

Parameters and characteristics for this part

Specification	MCDKT3120

Control / Drive Type	Servo AC
Current - Output	30 A
For Use With/Related Products	MINAS A5 Series
Interface	USB, RS-485, RS-232
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	120 V
Voltage - Supply [Max]	120 VAC
Voltage - Supply [Min]	100 VAC
Wattage - Load	750 W
Weight	1.6 kg
Weight	3.6 lbs

Part	Weight	Weight	Control / Drive Type	Voltage - Load	For Use With/Related Products	Current - Output	Interface	Mounting Type	Type	Motor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Wattage - Load
Panasonic Industrial Automation Sales MCDKT3520	1.6 kg	3.6 lbs	Servo AC	240 V	MINAS A5 Series	30 A	RS-232 RS-485 USB	Chassis Mount	Module	Servo	200 VAC	240 VAC	750 W
Panasonic Industrial Automation Sales MCDKT3120	1.6 kg	3.6 lbs	Servo AC	120 V	MINAS A5 Series	30 A	RS-232 RS-485 USB	Chassis Mount	Module	Servo	100 VAC	120 VAC	750 W
Panasonic Industrial Automation Sales MCDKT3520E	1.6 kg	3.6 lbs	Servo AC	240 V	MINAS A5 Series	30 A	RS-232 RS-485 USB	Chassis Mount	Module	Servo	200 VAC	240 VAC	750 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Servo AC 100 ~ 120VAC Supply 30A 120V Load
