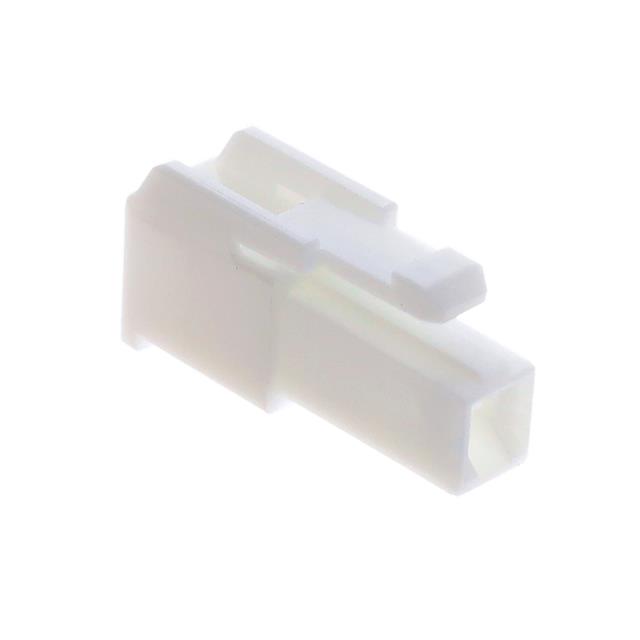

VLP-01V

Active

JST Sales America Inc.

CONN PLUG HOUSING 1POS VL SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VLP-01V

Active

JST Sales America Inc.

CONN PLUG HOUSING 1POS VL SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VLP-01V

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C

VLP Series

Part	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Insulation Material	Number of Positions	Note	Contact Type	Contact Termination	Mounting Type	Connector Type	Number of Rows	Pitch [x]	Pitch [x]
JST Sales America Inc. VLP-06V	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-01V	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	1	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	1
JST Sales America Inc. VLP-12V-1	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	12	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-09V-1	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	9	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	3	6.2 mm	0.244 in
JST Sales America Inc. VLP-06V-1	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-04V-1	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	4	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-08V	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	8	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-03V	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6		Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	1	6.2 mm	0.244 in
JST Sales America Inc. VLP-12V	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	12	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in
JST Sales America Inc. VLP-08V-1	Latch Lock	90 °C	-25 °C	White	Polyamide (PA66) Nylon 6/6	8	Contacts Not Included	Female Socket	Crimp	Free Hanging (In-Line)	Plug	2	6.2 mm	0.244 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.13
		2500	$ 0.12

Description

General part information

VLP Series

1 Rectangular Connectors - Housings Plug White
