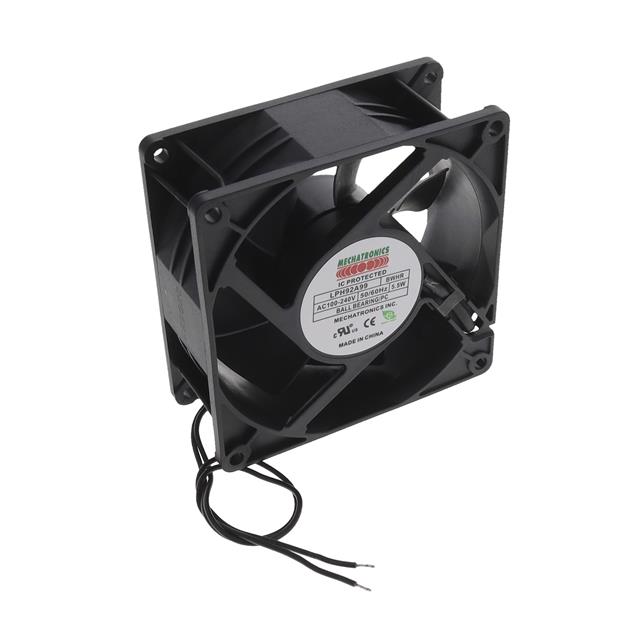

LPH92A99-BWHR-PC
ActiveMechatronics Bearing Group
EC FAN AXIAL 92 X 92 X 38MM W/PA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPH92A99-BWHR-PC |
|---|---|
| Air Flow | 68 CFM |
| Air Flow | 1.9 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 110 mA |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Parylene Coating, Auto Restart |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 42 dB |
| Power (Watts) | 5.5 W |
| RPM | 3500 RPM |
| Static Pressure | 72.2 Pa |
| Static Pressure | 0.29 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 240 VAC |
| Voltage - Rated [Min] | 100 VAC |
| Voltage Range [Max] | 264 VAC |
| Voltage Range [Min] | 90 VAC |
| Weight | 0.384 lb |
| Weight | 174.18 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.49 | |
| 10 | $ 26.02 | |||
| 25 | $ 25.03 | |||
| 50 | $ 23.39 | |||
| 100 | $ 21.58 | |||
| 250 | $ 21.25 | |||
Description
General part information
LPH92 Series
Fan Tubeaxial 100 ~ 240VAC Square - 92mm L x 92mm H Ball 68.0 CFM (1.90m³/min) 2 Wire Leads
