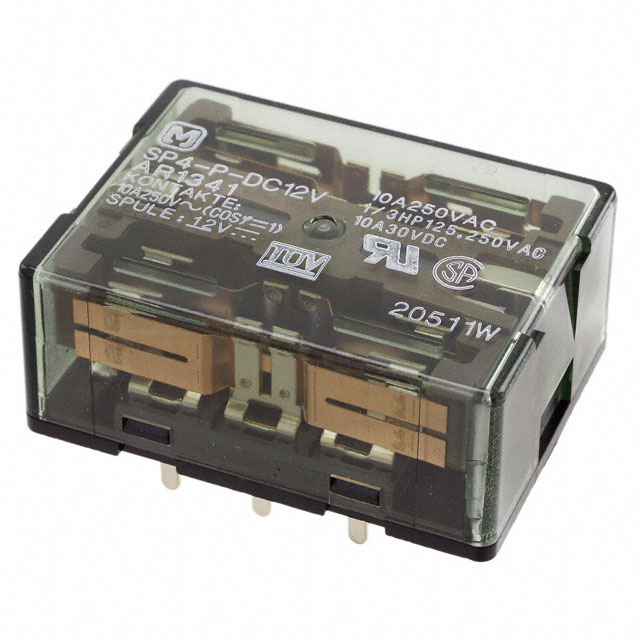

SP4-P-DC12V

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 10A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 10A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Coil Type	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Release Time	Contact Material	Termination Style	Approval Agency	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Load - Max Switching	Contact Form	Switching Voltage [Max]	Coil Resistance	Mounting Type	Coil Current
Panasonic Electric Works SP4-P-DC12V	General Purpose	Non Latching	12 VDC	60 °C	-50 °C	30 ms	20 ms	Silver Tin Oxide (AgSnO)	PC Pin	CSA UR VDE	1.2 VDC	10 A	8.4 VDC	300 W 2500 VA	4PDT (4 Form C)	30 VDC 250 VAC	480 Ohms	Through Hole
Panasonic Electric Works SP4-P-DC24V	General Purpose	Non Latching	24 VDC	60 °C	-50 °C	30 ms	20 ms	Silver Tin Oxide (AgSnO)	PC Pin	CSA UR VDE	2.4 VDC	10 A	16.8 VDC	300 W 2500 VA	4PDT (4 Form C)	30 VDC 250 VAC	1.92 kOhms	Through Hole
Panasonic Electric Works SP4-P-DC48V	General Purpose	Non Latching	48 VDC	60 °C	-50 °C	30 ms	20 ms	Silver Tin Oxide (AgSnO)	PC Pin	CSA UR VDE	4.8 VDC	10 A	33.6 VDC	300 W 2500 VA	4PDT (4 Form C)	30 VDC 250 VAC	7.7 kOhms	Through Hole	6.2 mA
