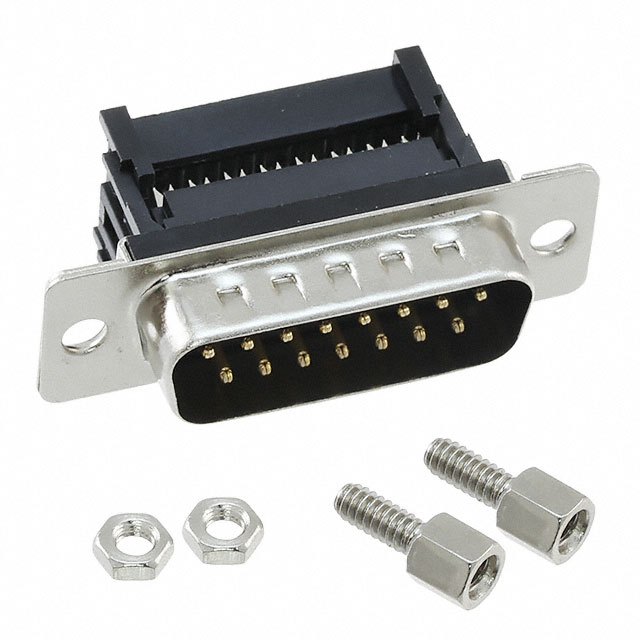

400M0-15-1-00

Active

CnC Tech, LLC

CONN D-SUB PLUG 15POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB PLUG 15POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	400M0-15-1-00

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Feed Through
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Shell Material, Finish	Number of Positions	Flange Feature	Shell Size, Connector Layout	Connector Style	Mounting Type	Contact Finish	Termination	Contact Material	Contact Type	Number of Rows	Material Flammability Rating	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Dielectric Material
CnC Tech, LLC 400M0-15-1-00	Nickel Plated Steel	15	Female Screwlock (4-40) Mating Side	2	D-Sub	Free Hanging (In-Line)	Gold	IDC Ribbon Cable	Brass	Signal	2	UL94 V-0	Male Pins Plug	Feed Through Grounding Indents	-40 °C	105 ░C	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled
CnC Tech, LLC 400M0-15-1-004S	Nickel Plated Steel	15	Female Screwlock (4-40) Mating Side	2	D-Sub	Free Hanging (In-Line)	Gold	IDC Ribbon Cable	Brass	Signal	2	UL94 V-0	Male Pins Plug	Feed Through Grounding Indents Strain Relief	-40 °C	105 ░C	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
