C3DDS-1636M

Active

CW Industries

IDC CABLE - CKR16S/AE16M/CKR16S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3DDS-1636M

Active

CW Industries

IDC CABLE - CKR16S/AE16M/CKR16S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3DDS-1636M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

C3DDS-1 Series

Part	Usage	Contact Finish	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Length [x]	Length [x]	Features	Number of Positions	Shielding	Number of Positions	Color	Length	Length	Length
CW Industries C3DDS-1036G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	3 ft	914.4 mm	Polarizing Key Strain Relief	10	Unshielded
CW Industries C3DDS-1636G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	3 ft	914.4 mm	Polarizing Key Strain Relief		Unshielded	16
CW Industries C3DDS-1636M	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	3 ft	914.4 mm	Polarizing Key Strain Relief		Unshielded	16	Multiple Ribbon
CW Industries C3DDS-1606G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC			Polarizing Key Strain Relief		Unshielded	16		152.4 mm	6 "	0.5 '
CW Industries C3DDS-1406M	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC			Polarizing Key Strain Relief	14	Unshielded		Multiple Ribbon	152.4 mm	6 "	0.5 '
CW Industries C3DDS-1618G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	1.5 ft	457.2 mm	Polarizing Key Strain Relief		Unshielded	16
CW Industries C3DDS-1006G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC			Polarizing Key Strain Relief	10	Unshielded			152.4 mm	6 "	0.5 '
CW Industries C3DDS-1018G	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	1.5 ft	457.2 mm	Polarizing Key Strain Relief	10	Unshielded
CW Industries C3DDS-1618M	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	1.5 ft	457.2 mm	Polarizing Key Strain Relief		Unshielded	16	Multiple Ribbon
CW Industries C3DDS-1036M	Board In	Tin	0.05 "	1.27 mm	2.54 µm	100 µin	2	0.1 in	2.54 mm	Socket to Socket	IDC	3 ft	914.4 mm	Polarizing Key Strain Relief	10	Unshielded		Multiple Ribbon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.25
		10	$ 9.40
		25	$ 8.50
		50	$ 7.88
		100	$ 7.33
		250	$ 6.67
		500	$ 6.23
		1000	$ 5.83

Description

General part information

C3DDS-1 Series

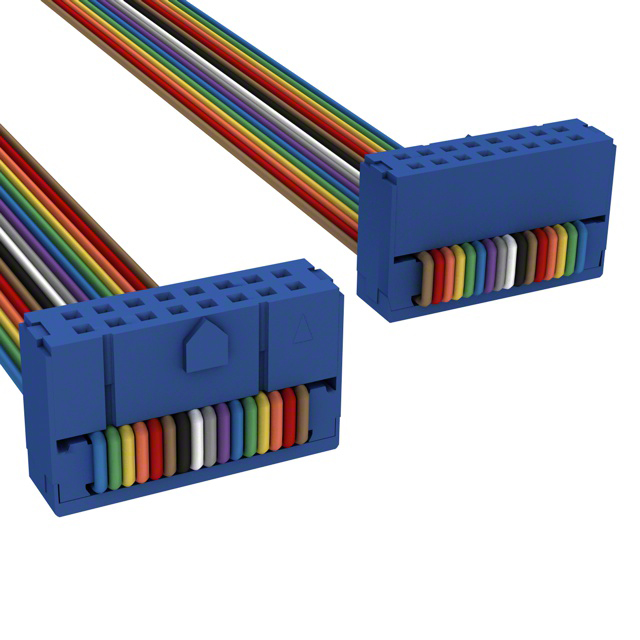

16 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
