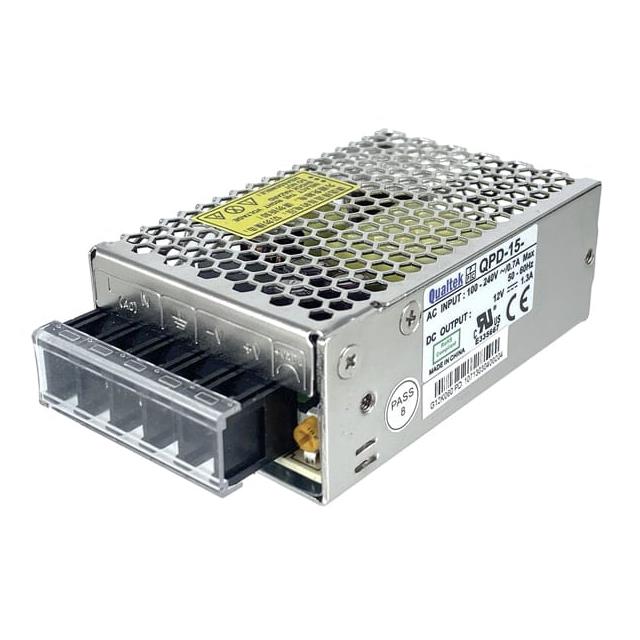

QPD-15-12

Active

Qualtek

AC/DC CONVERTER 12V 15W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	QPD-15-12

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	1.3 A
Efficiency	80 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	3.11 in
Size / Dimension [x]	79 mm
Size / Dimension [y]	51 mm
Size / Dimension [y]	2.01 in
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	88 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Applications	Power (Watts)	Type	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Features	Voltage - Output 1	Efficiency	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]
Qualtek QPD-15-12	ITE (Commercial)	15 W	Enclosed	1.3 A	264 VAC	88 VAC	CB CE cURus	Adjustable Output DC Input Capable Universal Input	12 V	80 %	1	1.1 in	3.11 in	51 mm	28 mm	79 mm	2.01 in	Chassis Mount	3000 V	-20 °C	70 °C
Qualtek QPD-15-3.3	ITE (Commercial)	15 W	Enclosed	4 A	264 VAC	88 VAC	CB CE cURus	Adjustable Output DC Input Capable Universal Input	3.3 V	71 %	1	1.13 in	3.11 in	50.4 mm	28.8 mm	79 mm	1.98 in	Chassis Mount	3000 V	-20 °C	70 °C
Qualtek QPD-15-24	ITE (Commercial)	15 W	Enclosed	700 mA	264 VAC	88 VAC	CB CE cURus	Adjustable Output DC Input Capable Universal Input	24 V	83 %	1	1.1 in	3.11 in	51 mm	28 mm	79 mm	2.01 in	Chassis Mount	3000 V	-20 °C	70 °C
Qualtek QPD-15-15	ITE (Commercial)	15 W	Enclosed	1 A	264 VAC	88 VAC	CB CE cURus	Adjustable Output DC Input Capable Universal Input	15 V	83 %	1	1.13 in	3.11 in	50.4 mm	28.8 mm	79 mm	1.98 in	Chassis Mount	3000 V	-20 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 24.65

General part information

Enclosed AC DC Converters 1 Output 12V 88 ~ 264 VAC Input
