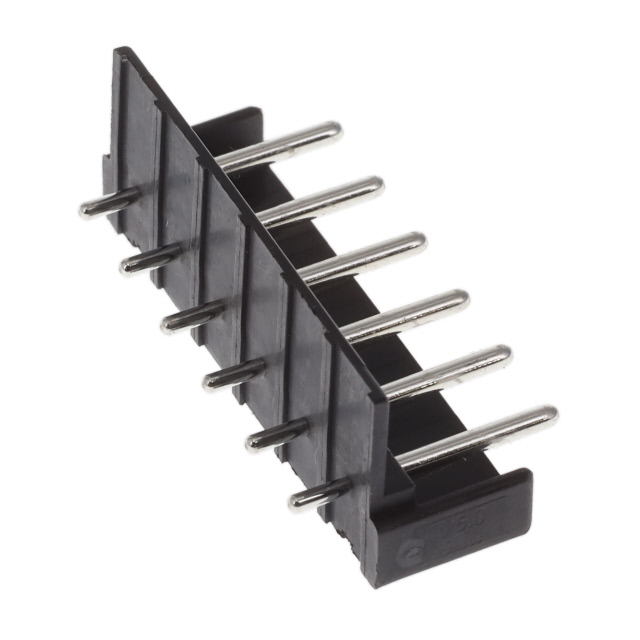

EX0600010000G

Active

Amphenol Anytek

EX 5.0 - 6P NL66 , BRASS BRIGHT

Search across all available documentation for this part.

Active

Amphenol Anytek

EX 5.0 - 6P NL66 , BRASS BRIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	EX0600010000G

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.132 in
Contact Tail Length	3.35 mm
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	9.5 mm
Insulation Height	0.374 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination Style	Solder
Type	Male Pins, Partial Shroud, Header
Voltage - UL	300 V

Part	Mounting Type	Housing Material	Voltage - UL	Pitch [x]	Pitch [x]	Contact Mating Finish	Number of Positions	Header Orientation	Insulation Height	Insulation Height	Type	Number of Levels	Contact Tail Length	Contact Tail Length	Color	Material Flammability Rating	Termination Style	Current - UL	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Anytek EX0600010000G	Through Hole	Thermoplastic	300 V	5 mm	0.197 in	Tin	6	Vertical	9.5 mm	0.374 in	Header Male Pins Partial Shroud	1	0.132 in	3.35 mm	Black	UL94 V-0	Solder	10 A	Brass	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) Vertical Through Hole
