F6N1.50BK200

Obsolete

Techflex

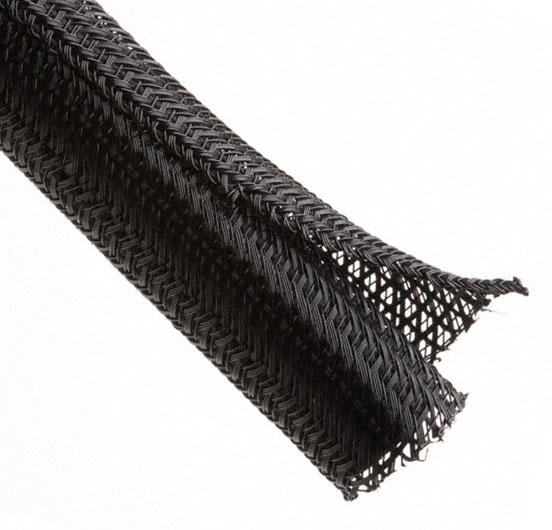

SELF WRAP 1.5" X 200' BLACK

Search across all available documentation for this part.

Obsolete

Techflex

SELF WRAP 1.5" X 200' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6N1.50BK200

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	1.5 in
Diameter - Inside, Non-Expanded [diameter]	38.1 mm
Features	Clean Cut, Chemical Resistant
Length	60.96 m
Length	200 '
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.96 mm
Wall Thickness [custom]	0.038 in

Part	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Features	Type Attributes	Material	Color	Material Flammability Rating	Length	Length
Techflex F6N1.50BK200	0.96 mm	0.038 in	125 °C	-70 °C	Abrasion and Cut Resistant	1.5 in	38.1 mm	Self Wrap	Chemical Resistant Clean Cut	Split Flexible Tube	Polyethylene Terephthalate (PET) Halogen Free	Black	UL94 V-0	60.96 m	200 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Self Wrap X 200' (60.96m) Black
