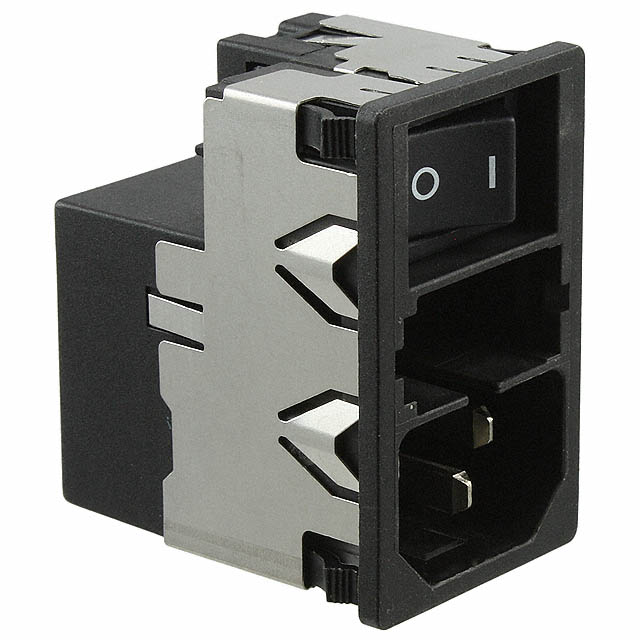

KMF1.1261.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1261.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Current Rating - Appliance Inlet	Material Flammability Rating	Ingress Protection	Switch Features	Termination	Termination	Accomodates a Fuse	Mounting Type	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter	Features	Connector Style	Fuse Holder, Drawer	Approval Agency
SCHURTER Inc. KMF1.1261.11	Filtered (EMI RFI) - Commercial	250 VAC	2.5 mm	1 mm	0.098 in	0.039 in	10 A	UL94 V-0	IP40	Switch On-Off	0.189 " 4.8 mm	Quick Connect		Panel Mount Snap-In	Receptacle Male Blades - Module	47.8 mm	28.8 mm	6 A	Shielded	IEC 320-C14	Drawer Sold Separate	CCC cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.10

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
