50.138 PA/SW

Active

Jacob GmbH

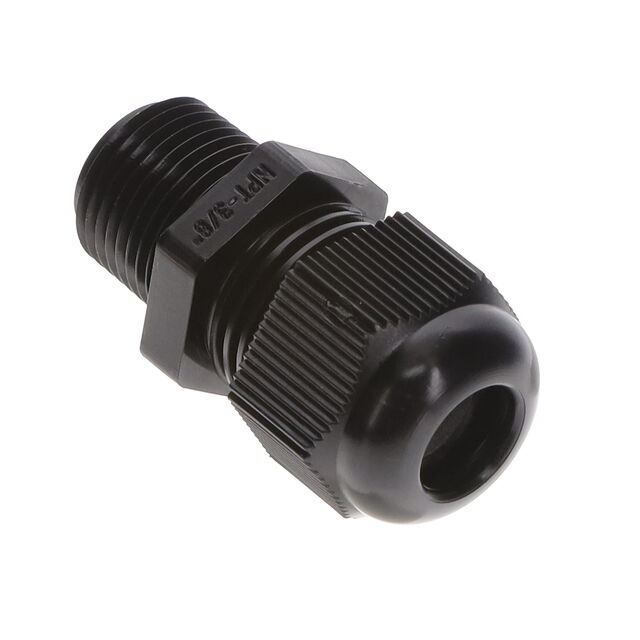

CABLE GLAND 5-10MM 3/8" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 5-10MM 3/8" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.138 PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/8" NPT
Type	Cable Gland

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Thread Length	Thread Length	Includes	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH 50.138 PA/SW	3/8" NPT	0.394 "	10 mm	5 mm	0.197 in	100 °C	-40 °C	IP68 - Dust Tight Waterproof	Cable Gland	0.591 in	15 mm	Sealing Ring	Black
Jacob GmbH 50.138 PA/RSW	3/8" NPT	0.276 in	7 mm			100 °C	-40 °C	IP68 - Dust Tight Waterproof	Cable Gland	0.61 in	15.5 mm	Sealing Ring	Black	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 3/8" NPT Black
