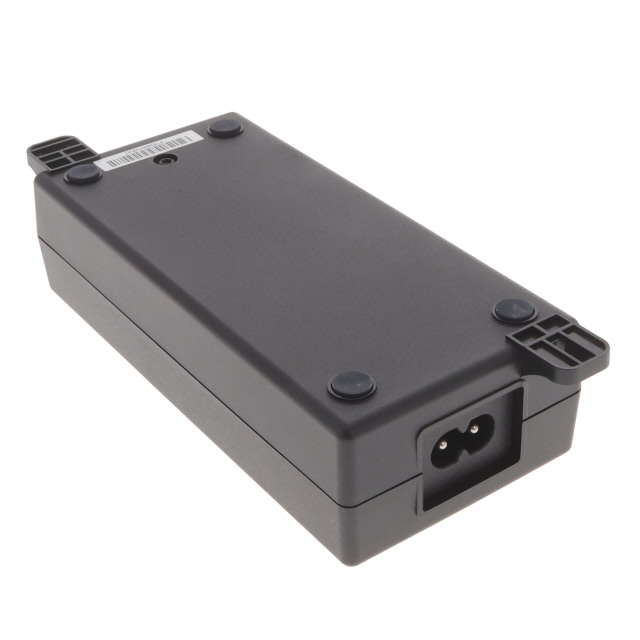

POE29W-560
ObsoletePhihong USA
POE INJECTOR DESKTOP 56V
Deep-Dive with AI
Search across all available documentation for this part.
POE29W-560
ObsoletePhihong USA
POE INJECTOR DESKTOP 56V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE29W-560 |
|---|---|
| Approval Agency | cULus, CE |
| Compliance | IEEE802.3af |
| Current - Output | 540 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C8 |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | RJ45, Wire Leads |
| Power (Watts) - Per Port | 30 W |
| Size / Dimension [x] | 5.51 " |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [y] | 2.55 " |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Type | Passive Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
POE29W Series
56V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate
