BCD 250 UT-7035 - BCD-250-UT-7035

BCD 250 UT-7035

Active
Bopla Enclosures

BOX ABS GRAY 10.24"L X 8.98"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
BCD 250 UT-7035 - BCD-250-UT-7035

BCD 250 UT-7035

Active
Bopla Enclosures

BOX ABS GRAY 10.24"L X 8.98"W

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationBCD 250 UT-7035
Area (L x W)593 cm²
Area (L x W)91.9 in²
ColorGray
Container TypeBox
DesignOpen End(s)
FeaturesPCB Supports, Card Guides
Height [z]4.134 in
Height [z]105 mm
MaterialPlastic, ABS
Material Flammability RatingUL94 HB
Size / Dimension [x]260 mm
Size / Dimension [x]10.236 inches
Size / Dimension [y]228 mm
Size / Dimension [y]8.976 "
Thickness3 mm
Thickness0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 65.15

Description

General part information

BCD 250 Series

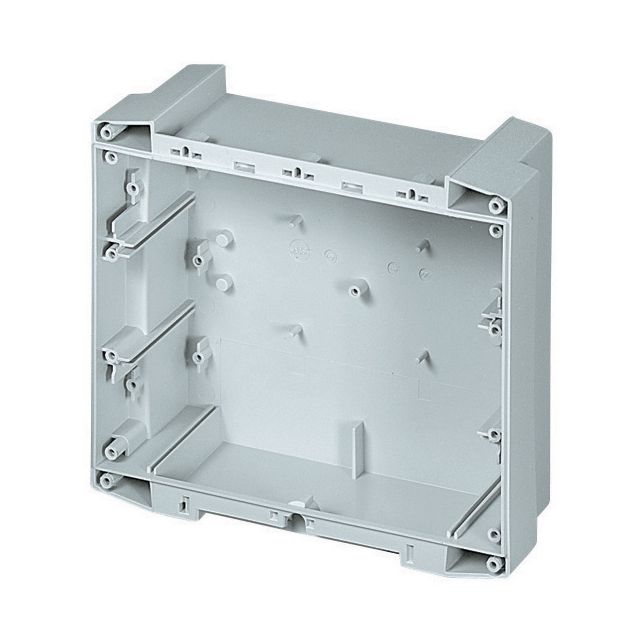

Box Plastic, ABS Gray Open End(s) 10.236" L x 8.976" W (260.00mm x 228.00mm) X 4.134" (105.00mm)

Documents

Technical documentation and resources
