Q-3B00V0005006I

Active

Amphenol Custom Cable

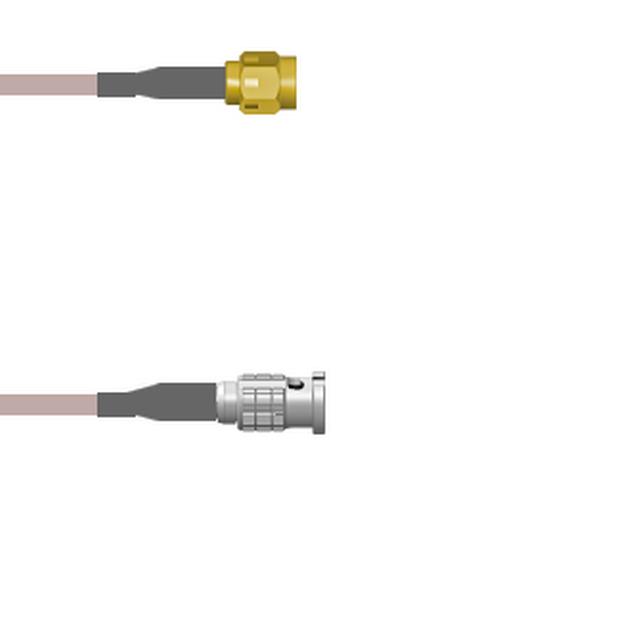

CBL ASSY HDBNC-SMA PLUG-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3B00V0005006I

Active

Amphenol Custom Cable

CBL ASSY HDBNC-SMA PLUG-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B00V0005006I

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	HD-BNC to SMA

Q-3B00V0 Series

Part	1st Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Connector Impedance	Color	Cable Impedance	Overall Impedance	Style	Cable Type	Features	Length	Length	Length	1st Connector	2nd Connector	2nd Contact Gender
Amphenol Custom Cable Q-3B00V00032.5M	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded	8.2 '	98.4 in	2.5 m	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0005006I	Free Hanging (In-Line)	Male	3 GHz	Free Hanging (In-Line)	50 Ohms	Copper	50 Ohms	50 Ohms	HD-BNC to SMA	RG-316	Shielded		6 in	152.4 mm	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0003003I	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded		3 in	76.2 mm	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0003.75M	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded		29.53 "	750 mm	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0003003M	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded	9.8 '	118.1 in	3 m	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0003060I	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded	5 ft	5 '	1.5 m	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0005072I	Free Hanging (In-Line)	Male	3 GHz	Free Hanging (In-Line)	50 Ohms	Copper	50 Ohms	50 Ohms	HD-BNC to SMA	RG-316	Shielded	6 ft	72 in	1.8 m	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0005036I	Free Hanging (In-Line)	Male	3 GHz	Free Hanging (In-Line)	50 Ohms	Copper	50 Ohms	50 Ohms	HD-BNC to SMA	RG-316	Shielded		36 in	91.44 cm	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0003048I	Free Hanging (In-Line)	Male	1 GHz	Free Hanging (In-Line)	50 Ohms	Black	50 Ohms	50 Ohms	HD-BNC to SMA	RG-174	Shielded	4 ft	48 in	1200 mm	HD-BNC Plug	SMA Plug	Male
Amphenol Custom Cable Q-3B00V0005002M	Free Hanging (In-Line)	Male	3 GHz	Free Hanging (In-Line)	50 Ohms	Copper	50 Ohms	50 Ohms	HD-BNC to SMA	RG-316	Shielded	6.6 ft	78.7 in	2 m	HD-BNC Plug	SMA Plug	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.26
		25	$ 79.66
		50	$ 78.07
		100	$ 76.48
		250	$ 74.89

Description

General part information

Q-3B00V0 Series

Cable Assembly Coaxial HD-BNC to SMA RG-316 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
