ALC80C301DC400

Active

KEMET

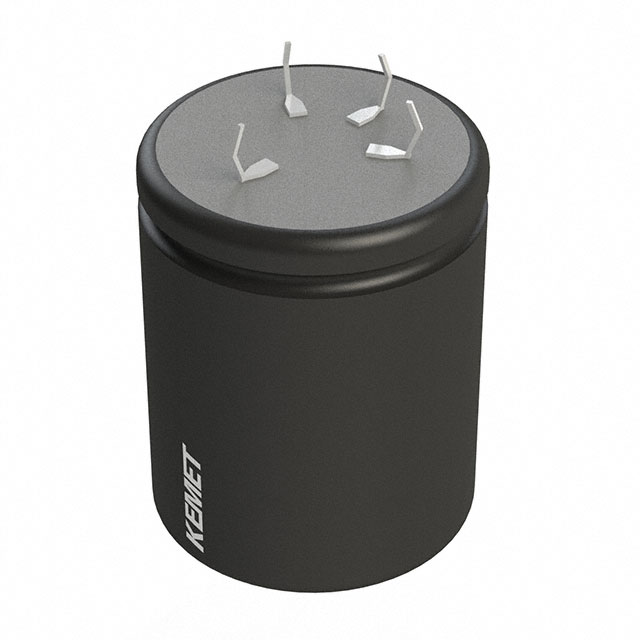

ELECTROLYTIC CAPACITOR, 300 ΜF, 400 V, ± 20%, SNAP-IN, 8000 HOURS @ 105°C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KEM_A4082_ALC80.pdf +2

ALC80C301DC400

Active

KEMET

ELECTROLYTIC CAPACITOR, 300 ΜF, 400 V, ± 20%, SNAP-IN, 8000 HOURS @ 105°C

Deep-Dive with AI

DocumentsDatasheet KEM_A4082_ALC80.pdf +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC80C301DC400

Applications	General Purpose
Capacitance	300 µF
ESR (Equivalent Series Resistance)	408.4 mOhm
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Impedance	210 mOhms
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In - 4 Lead
Polarization	Polar
Ripple Current @ High Frequency	5.34 A
Ripple Current @ Low Frequency	1.93 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	400 V

ALC80C Series

Part	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Capacitance	Impedance	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lifetime @ Temp.	Voltage - Rated	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC80C561EF450	Polar	1.575 "	40 mm	2.047 in	52 mm	General Purpose	Through Hole	22.5 mm	0.886 in	7.97 A	560 µF	140 mOhms	3.2 A	240 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	9000 Hrs	450 V	20 %
KEMET ALC80C621DC250	Polar	1.378 in	35 mm	1.457 in	37 mm	General Purpose	Through Hole	22.5 mm	0.886 in	5.53 A	620 µF	170 mOhms	2.5 A	286 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	8000 Hrs	250 V	20 %
KEMET ALC80C102DF250	Polar	1.378 in	35 mm	2.047 in	52 mm	General Purpose	Through Hole	22.5 mm	0.886 in	7.52 A	1000 µF	106 mOhms	3.46 A	178 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	8000 Hrs	250 V	20 %
KEMET ALC80C223EH063	Polar	1.575 "	40 mm	2.441 in	62 mm	General Purpose	Through Hole	22.5 mm	0.886 in	11.97 A	22000 µF	19 mOhms	10.07 A	24 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	9000 Hrs	63 V	20 %
KEMET ALC80C112EL450	Polar	1.575 "	40 mm	3.228 in	82 mm	General Purpose	Through Hole	22.5 mm	0.886 in	11.12 A	1100 µF	74 mOhms	4.92 A	125 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	9000 Hrs	450 V	20 %
KEMET ALC80C152EF250	Polar	1.575 "	40 mm	2.047 in	52 mm	General Purpose	Through Hole	22.5 mm	0.886 in	8.39 A	1.5 mF	77 mOhms	4.41 A	126 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	9000 Hrs	250 V	20 %
KEMET ALC80C114EL025	Polar	1.575 "	40 mm	3.228 in	82 mm	General Purpose	Through Hole	22.5 mm	0.886 in	14.88 A	110000 µF	15 mOhms	13.66 A	16 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	9000 Hrs	25 VDC	20 %
KEMET ALC80C301DC400	Polar	1.378 in	35 mm	1.457 in	37 mm	General Purpose	Through Hole	22.5 mm	0.886 in	5.34 A	300 µF	210 mOhms	1.93 A	408.4 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	8000 Hrs	400 V	20 %
KEMET ALC80C273DC025	Polar	1.378 in	35 mm	1.457 in	37 mm	General Purpose	Through Hole	22.5 mm	0.886 in	8.75 A	27000 µF	41 mOhms	7.28 A	46.56 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	8000 Hrs	25 VDC	20 %
KEMET ALC80C751DD250	Polar	1.378 in	35 mm			General Purpose	Through Hole	22.5 mm	0.886 in	6.26 A	750 µF	141 mOhms	2.84 A	237 mOhm	-40 °C	105 ░C	Radial Can - Snap-In - 4 Lead	8000 Hrs	250 V	20 %	42 mm	1.654 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.94
		10	$ 6.88
		50	$ 6.18
		100	$ 5.37

Description

General part information

ALC80C Series

ALC80C301DC400 is an ALC80 high CV snap-in aluminum electrolytic capacitor that offers high performance and reliability. Volumetric efficiency ensures the maximum capacitance capability in a smaller size. Typical applications for the ALC80 capacitor include inverters, frequency converters, motor drives, motor control, UPS systems, smoothing, energy storage, alternative energy, charging stations, traction, demanding power supplies (SMPS), welding, and HVAC.
