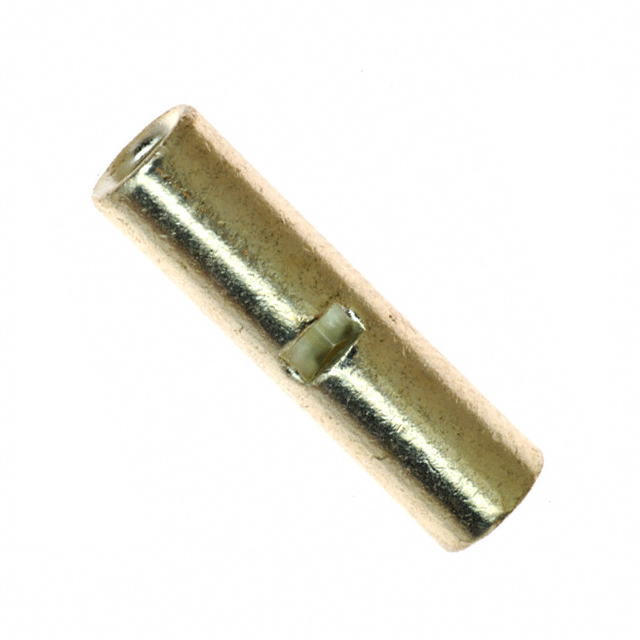

M18BCK

Active

3M (TC)

CONN SPLICE 18-22 AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M18BCK

Active

3M (TC)

CONN SPLICE 18-22 AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M18BCK

Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

M18 Series

Part	Termination	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Termination	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges	Contact Finish	Features	Contact Material	Length - Overall [x]	Length - Overall [x]	Mounting Type	Stud/Tab Size	Width - Outer Edges [y]	Thickness	Thickness	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Width - Outer Edges [y]	Length - Overall
3M (TC) M18BCK	Crimp	Non-Insulated	Butt Splice Individual Openings Inline	22 AWG	17.5 AWG	2
3M (TC) M18-8FX-BOTTLE	Crimp	Non-Insulated	Standard	22 AWG	17.5 AWG		0.29 in	7.37 mm	6.35 mm	0.25 "	8.64 mm	0.34 in	Tin	Brazed Seam	Copper ETP	17.78 mm	0.7 in	Free Hanging (In-Line)	8 Stud
3M (TC) M18-8R/LK	Crimp	Non-Insulated	Circular	22 AWG	17.5 AWG						7.87 mm			Brazed Seam		18.8 mm	0.74 in	Free Hanging (In-Line)	8 Stud	0.31 in	0.03 in	0.76 mm
3M (TC) M18-8R/LX-BOTTLE	Crimp	Non-Insulated	Circular	22 AWG	17.5 AWG						7.87 mm		Tin	Brazed Seam	Copper ETP	18.8 mm	0.74 in	Free Hanging (In-Line)	8 Stud	0.31 in	0.03 in	0.76 mm
3M (TC) M18-6FBX	Crimp	Non-Insulated	Standard	22 AWG	17.5 AWG								Tin	Brazed Seam	Copper ETP	16.5 mm	0.65 "	Free Hanging (In-Line)					0.25 in	6.35 mm	6 Stud
3M (TC) M18-38RX-BOTTLE	Crimp	Non-Insulated	Circular	22 AWG	17.5 AWG								Tin	Brazed Seam	Copper ETP		0.93 in	Free Hanging (In-Line)	3/8 Stud	0.56 in	0.03 in	0.76 mm				14.22 mm	23.62 mm
3M (TC) M18-10FBX-BOTTLE	Crimp	Non-Insulated	Standard	22 AWG	17.5 AWG								Tin	Brazed Seam	Copper ETP	16.5 mm	0.65 "	Free Hanging (In-Line)					0.25 in	6.35 mm	10 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.47
		25	$ 0.43
		50	$ 0.40
		100	$ 0.39
		250	$ 0.35
		500	$ 0.34
		1000	$ 0.28
		3000	$ 0.25

Description

General part information

M18 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG
