JBXFD2G02MSSDSMR

Active

Souriau-Sunbank by Eaton

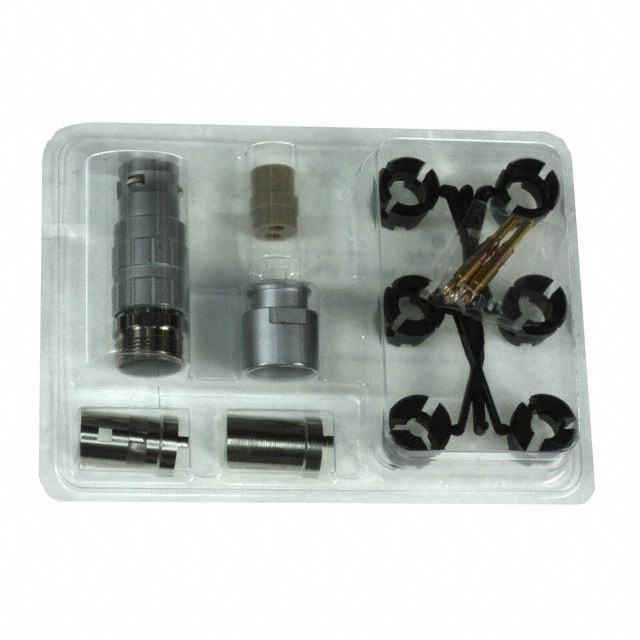

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXFD2G02MSSDSMR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXFD2G02MSSDSMR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	30 A
Fastening Type	Push-Pull
Features	Boot Adapter, Backshell
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Voltage Rating	1000 VDC

JBXFD2G Series

Part	Features	Color	Shell Finish	Applications	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Shielding	Orientation	Insert Material	Fastening Type	Ingress Protection	Shell Material	Voltage Rating	Backshell Material, Plating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Size - Insert	Primary Material	Termination	Number of Positions	Number of Positions
Souriau-Sunbank by Eaton JBXFD2G05MCSDSMR	Backshell Boot Adapter	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	14 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	900 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal	Crimp
Souriau-Sunbank by Eaton JBXFD2G06MCSDSMR	Backshell Boot Adapter	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	12 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	900 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal	Crimp	6
Souriau-Sunbank by Eaton JBXFD2G03FCSDSR	Backshell	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	17 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	830 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Female Sockets Plug	2	Metal	Crimp
Souriau-Sunbank by Eaton JBXFD2G19MCSDSR	Backshell	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	5 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	660 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal	Crimp	19
Souriau-Sunbank by Eaton JBXFD2G12MCSDSMR	Backshell Boot Adapter	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	7 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	830 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal	Crimp	12
Souriau-Sunbank by Eaton JBXFD2G02MSSDSMR	Backshell Boot Adapter	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	30 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	1000 VDC	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal		2
Souriau-Sunbank by Eaton JBXFD2G12MSSDSMR	Backshell Boot Adapter	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	7 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	830 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal		12
Souriau-Sunbank by Eaton JBXFD2G03MSSDSR	Backshell	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	17 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	830 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal
Souriau-Sunbank by Eaton JBXFD2G12MCSDSR	Backshell	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	7 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	830 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal	Crimp	12
Souriau-Sunbank by Eaton JBXFD2G16MSSDSR	Backshell	Silver	Chrome over Nickel	Industrial Instrumentation Medical Telecommunications	UL94 V-0	0.5 µm	19.7 µin	6 A	Gold	Shielded	G	Polyetheretherketone (PEEK)	Push-Pull	IP40	Brass	730 V	Brass Chrome over Nickel	Free Hanging (In-Line)	125 °C	-40 °C	Male Pins Plug	2	Metal			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 47.65

Description

General part information

JBXFD2G Series

2 Position Circular Connector Plug, Male Pins Solder Cup
